WORK [J] | TORQUE [Nm] | TRAVEL | ||
---|---|---|---|---|
ROTERY | transient - continuous | transient - continuous | deg - rad | |
L-Series | 0.29 - 0.21 | 0.28 - 0.2 | 60 - 1.05 | PWM, 0-5VDC, CAN |
EPG 512 | 0.7 - | 1.34 - | 30 - 0.52 | PWM 7A |
EPG 524 | 1.00 - | 1.91 - | 30 - 0.52 | PWM 7A |
EPG 1712 | 1.60 - | 2.62 - | 35 - 0.61 | PWM 7A |
EPG 1724 | 2.30 - | 3.77 - | 35 - 0.61 | PWM 7A |
ProAct I ISC | 2.50 - 1.20 | 1.91 - 0.9 | 75 - 1.31 | ±3 Vdc, 0-5VDC, 4-20 mA, CAN |
F-Series | 3.30 - 1.60 | 2.70 - 0.9 | 70 - 1.22 | PWM, 0-5VDC, 4-20 mA, CAN |

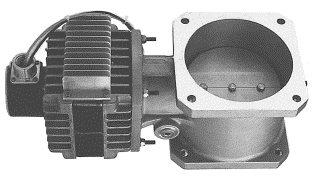

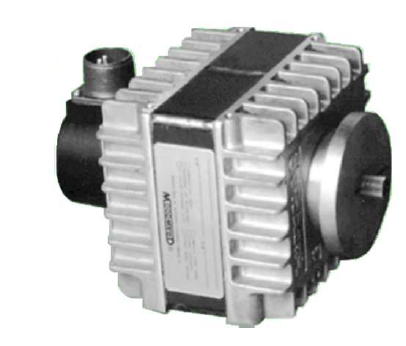

ProAct I | 3.40 - 1.70 | 2.60 - 1.30 | 75 - 1.31 | PWM, 4-20 mA, 0-200 mA, CAN, PWM 7A |
EPG 4024 | 5.40 - 4.60 | 7.37 - 6.30 | 42 - 0.73 | PWM 10A |
ProAct II | 7.00 - 3.40 | 5.35 - 2.60 | 75 - 1.31 | PWM, 4-20 mA, 0-200 mA, CAN, PWM 7A |

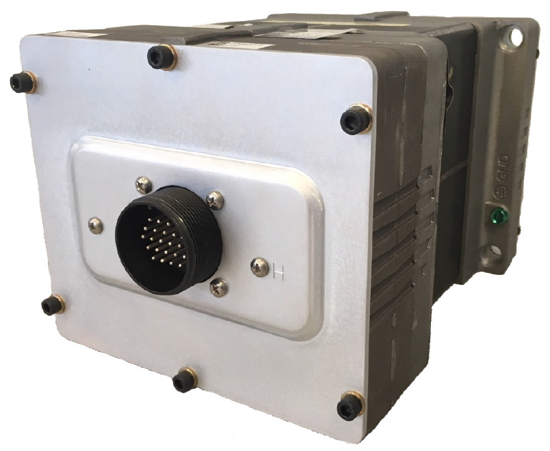

ProAct III | 14.00 - 7.00 | 10.7 - 5.30 | 75 - 1.31 | PWM, 4-20 mA, 0-200 mA, CAN, PWM 7A |
ProAct IV | 27.00 - 14.00 | 20.6 - 10.70 | 75 - 1.31 | PWM, 4-20 mA, 0-200 mA, CAN, PWM 7A |
R-Series 11 | 7.2 - | 5.5 - 11.0 | 73 - 1.28 | PWM, 4-20 mA, 0-200 mA, CAN |
R-Series 30 | 19.6 - | 15 - 30 | 73 - 1.28 | PWM, 4-20 mA, 0-200 mA, CAN |
R-Series 120 | 94.2 - | 120 - 60 | 90 - 1.56 | PWM, 4-20 mA, 0-200 mA, CAN |
EM 80 | 182.0 - | 190.0 - 91.0 | 40 - 0.70 | 4-20 mA (driver) |
EM 300 | 299.0 - | 429.0 - 260.0 | 40 - 0.70 | 4-20 mA (driver) |

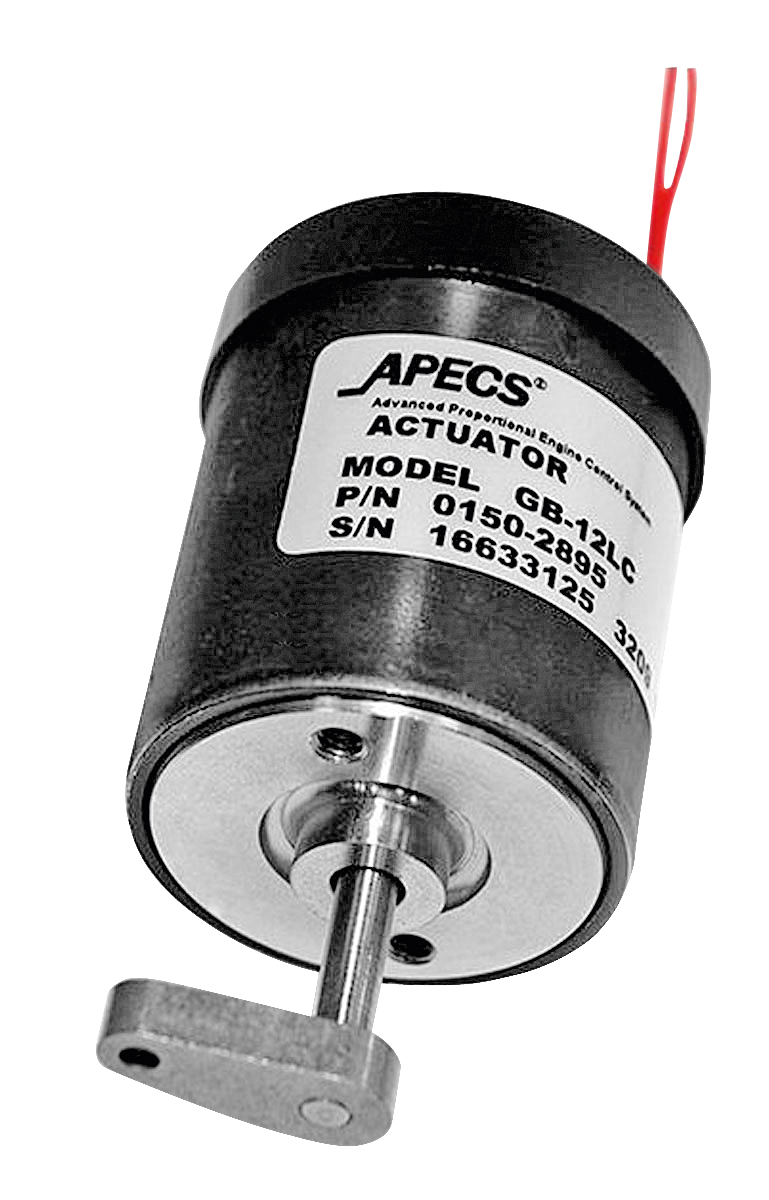

APECS 0200R | 14.8 - | 3...20 - | 72 - 1.26 | PWM 6A |
WORK [J] | TORQUE [Nm] | TRAVEL | ||
---|---|---|---|---|
Linear | transient - continuous | transient - continuous | INCH - mm | |
APECS 0154 | 0. - 0. | 0. - 0. | - | PWM 6A |

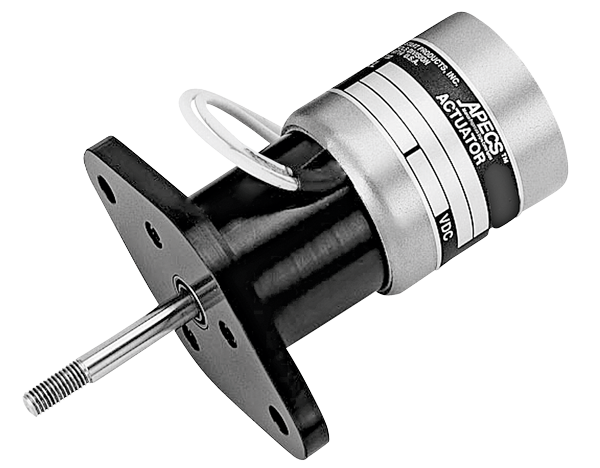

APECS 0175 | 0.36 - | 17.8 - | 0.8 - 20.3 | PWM 6A |
APECS 0225 | 0.68 - | 26.7 - | 1 - 25.4 | PWM 6A |
APECS 0250 | 0.68 - | 26.7 - | 1 - 25.4 | PWM 6A |
APECS 0275 | 1.47 - | 57.8 - | 1 - 25.4 | PWM 6A |
APECS 0300 | 1.70 - | 68.7 - | 1 - 25.4 | PWM 6A |
DYNA 2000 | 0.34 | 28.9 | 0.775 - 19.68 | PWM 6A |

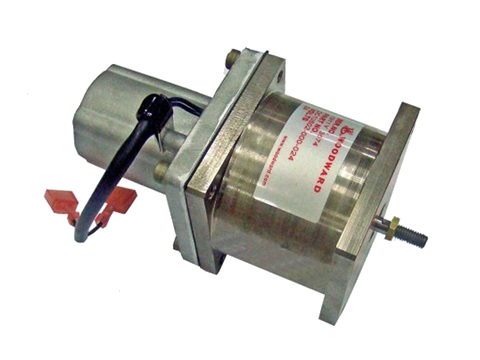

DYNA 2500 | 0.68 | 57.8 | 0.825 - 20.96 | PWM 6A |
EML 100 | 5.23 | 445 | 1.5 - 38 | PWM 20A (driver) |

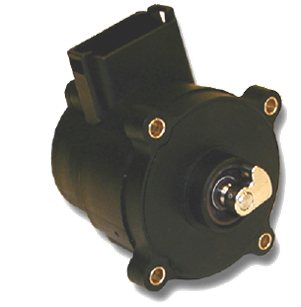

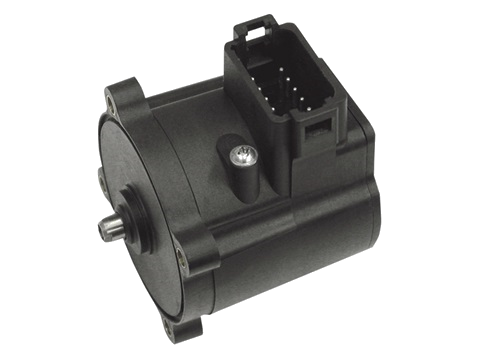

L-Series |
All L-series stand alone actuators: Covers L-series actuators are available with two alternative covers. They differ at the front mounting side: |
|
---|---|

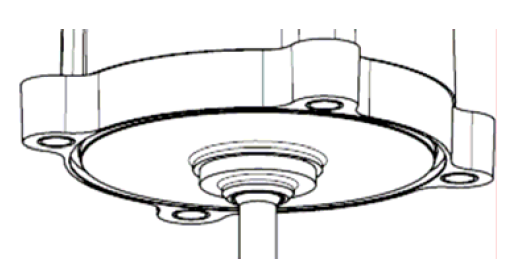

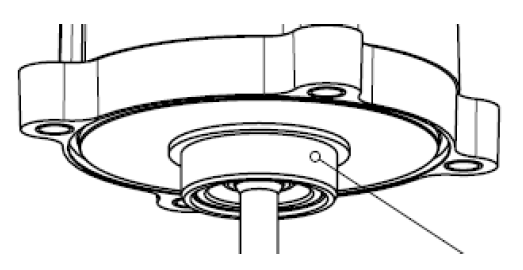

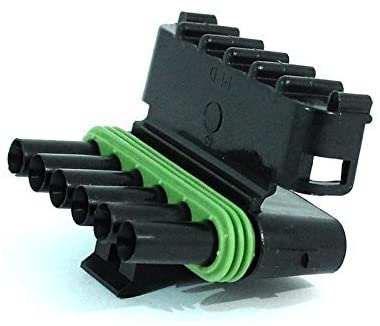

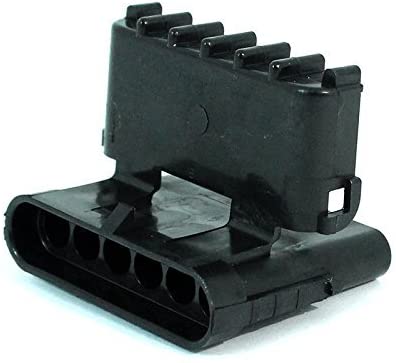

Standard cover | DELPHI cover |

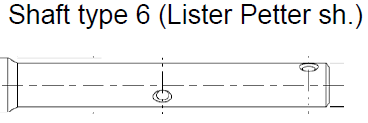

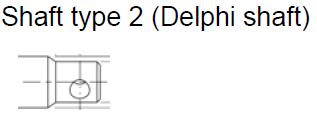

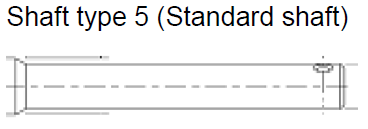

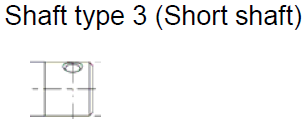

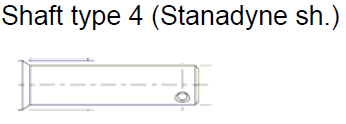

Shaft ends L-series actuators are available with different shaft ends: |
|||
---|---|---|---|
L = shaft length D = shaft diameter x = distance cross-hole to shaft end d = diameter cross-hole |
|||
L = 12 mm D = 7.96 mm x = distance cross-hole to shaft end d = diameter cross-hole |
L = 15.4 mm D = 6.35 mm x = 3.3 mm d = 3.16 mm |
||
L = 16 mm D = 7.86 mm x = 3 mm d = 2.36 mm |
L = 36 mm D = 6.35 mm x = 2.7 mm d = 1.6 mm |
||
L = 48 mm D = 6.35 mm (1/4") x = 2.7 mm d = 1.6 mm |
L = 48 mm D = 6.35 mm x = 1.9 / 2.7 mm d = 1.6 / 1.6 mm |

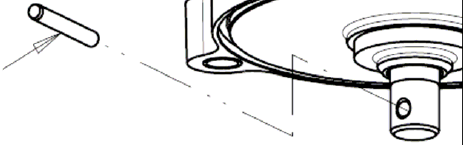

Connecting pins for cross holes: | |
---|---|
Given Partnumbers are for stainless steel pins * = standard in Woodward items |
Nominal ⌀ 1.6 mm (0.062") | Nominal ⌀ 2.38 mm (0.094") | Nominal ⌀ 3.2 mm (0.125") | |||
Length mm | Partnumber | Length mm | Partnumber | Length mm | Partnumber |
7.9 | 214084 | 11.1 | 1005-821 | 12.7 | 1005-747 |
9.5 | 1005-705* | 15.9 | 005-823 | 15.9 | 184-974 |
11.1 | 1005-801 | 19.1 | 1002-6076* | 19.1 | 1005-831 |
15.9 | 214053 | 19.1 | 1005-743 | 22.2 | 1005-749 |
Partnumber | Description | Shaft 1 | Shaft 2 | Shaft 3 | Shaft 4 | Shaft 5 | Shaft 6 |
---|---|---|---|---|---|---|---|
8404-7101 | Speed control, standard cover | - | - | - | - | - | X |
8404-1002 | Speed control, standard cover | - | - | - | - | X | - |
8404-7104 | Speed control, standard cover | - | - | - | X | - | - |
8404-7112 | Speed control, standard cover | X | - | - | - | - | - |
8404-1010 | Speed control, DELPHI cover | - | - | - | - | X | - |
8404-7106 | Position control, standard cover | - | - | - | - | X | - |
8404-1008 | Position control, DELPHI cover | - | X | - | - | - | - |
8404-1009 | Position control, DELPHI cover, CAN | - | X | - | - | - | - |
Partnumber | Description |
---|---|
02-0004-171 |
Partnumber | Description |
---|---|

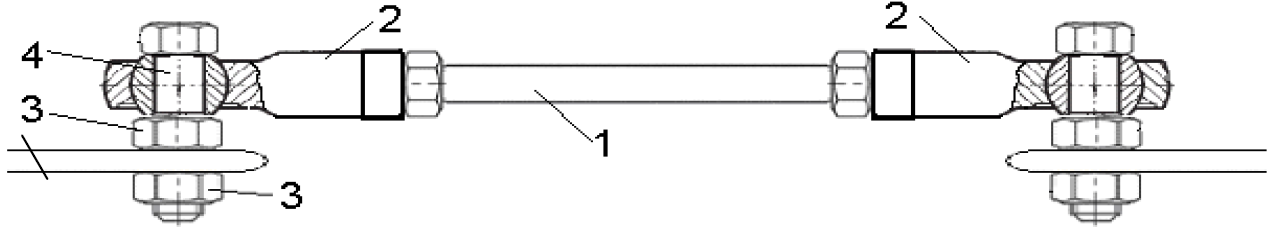

SA-4845 | Linkage kit, thread M6, max overall length between screw-centerlines 206mm |
SA-4661 | Linkage kit, thread ¼"-28, max overall length between screw-centerlines 206mm |
Partnumber | Description |
---|---|

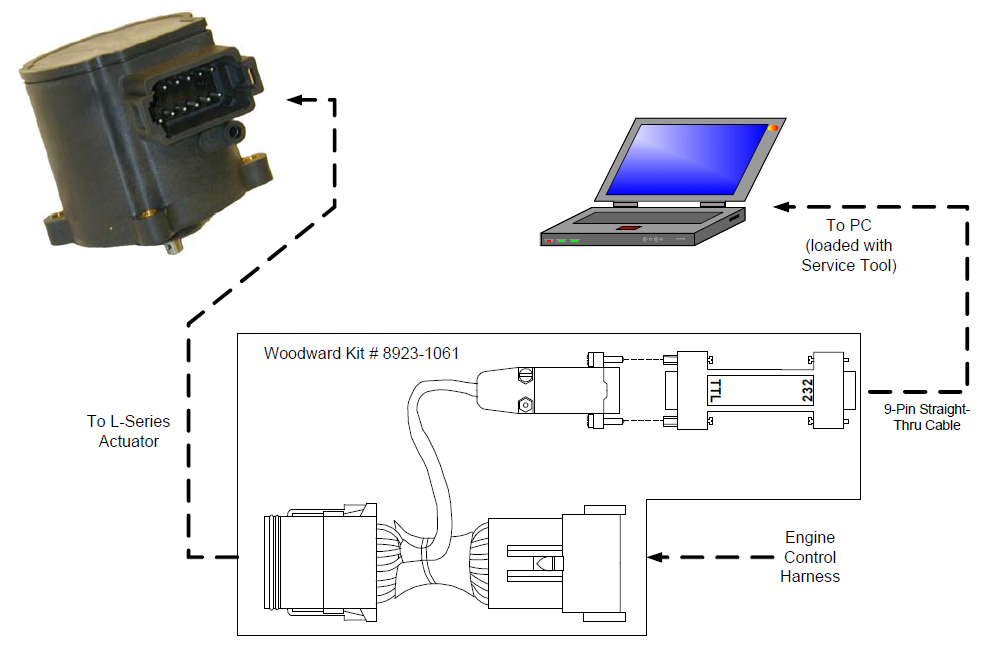

8923-1061 | KIT -L-SERIES SERIAL COMMUNICATIONS INTERFACE (5450-1023 + 1249-1039) |
5450-1023 | CABLE-L-SERIES RS232 COMMUNICATIONS, ASSEMBLY |
1249-1039 | ADAPTER-RS232 TO TTL/CMOS CONVERTER |
Partnumber | Description |
---|---|
8928-396 | DEUTSCH connector for L-series socket |
|
|
|
|
The Woodward L-Series Position control accepts either a PWM command or a 0-5V command and drives the 0-60 degree output shaft to the commanded position based on an internal shaft position sensor. The command signals are issued by the appropriate supervisory engine management system, and the L-Series must be set up properly to expect the correct signal for the application.

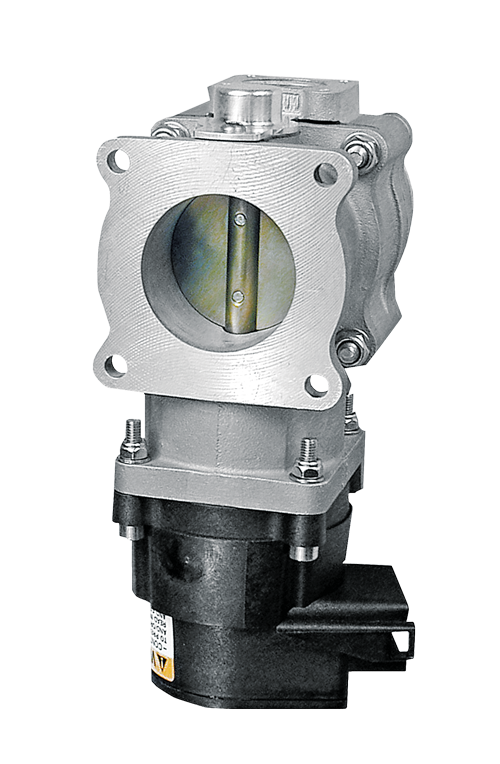

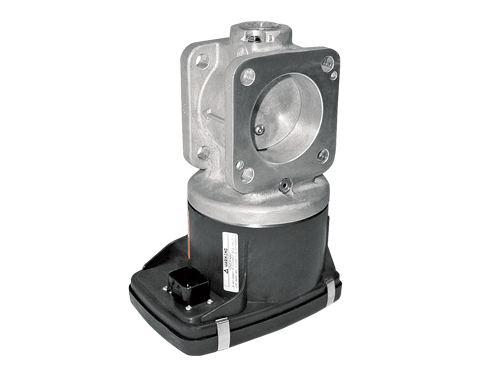

Stand-alone | ITB | LC50 | Trim valve ITB |
---|---|---|---|
for flexible use e.g. via linkage | Integrated throttle | Integrated throttle body plus mixer | For adjustments of airfuel ratio (AFR) |
SELECTION CHART ITB Position N/C
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
8404-7219 | 8404-2019 | L-SERIES ITB, 25MM, N/C, RH, POS CNTRL W/O CAN, GENERAL | 25 | - | - | - | - | |
8404-7220 | 8404-2020 | L-SERIES ITB, 30MM, N/C, RH, POS CNTRL W/O CAN, GENERAL | 30 | - | - | - | - | |
8404-7211 | - | L-SERIES ITB, 36MM, N/C, RH, POS CNTRL W/O CAN, GENERAL | 36 | - | - | - | - | |
8404-7221 | 8404-2021 | L-SERIES ITB, 43MM, N/C, RH, POS CNTRL W/O CAN, GENERAL | 43 | - | - | - | - | |
8404-7222 | 8404-2022 | L-SERIES ITB, 50MM, N/C, RH, POS CNTRL W/O CAN, GENERAL | 50 | - | - | - | - |
SELECTION CHART ITB Position N/O
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
8404-2056 | L-SERIES ITB, 25MM, N/O, POSITION CNTRL,SEALED, DFLT PRMTRS | 25 | - | - | - | - | ||
8404-2057 | L-SERIES ITB, 36MM, N/O, POSITION CNTRL,SEALED, DFLT PRMTRS | 30 | - | - | - | - | ||
8404-2057 | L-SERIES ITB, 36MM, N/O, POSITION CNTRL,SEALED, DFLT PRMTRS | 36 | - | - | - | - | ||
43 | - | - | - | - | ||||
8404-2058 | L-SERIES ITB, 50MM, N/O, POSITION CNTRL,SEALED, DFLT PRMTRS | 50 | - | - | - | - |
SELECTION CHART ITB Position GECO
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
8404-7213 | 8404-2013 | L-SERIES ITB, 25MM SEALED, N/C, RH, POS CNTRL W/O CAN, GECO STOIC | 25 | - | - | - | - | |
8404-7214 | 8404-2014 | L-SERIES ITB, 30MM SEALED, N/C, RH, POS CNTRL W/O CAN, GECO STOIC | 30 | - | - | - | - | |
8404-7215 | 8404-2015 | L-SERIES ITB, 36MM SEALED, N/C, RH, PWM POS CNTRL W/O CAN, GECO STOIC | 36 | - | - | - | - | |
8404-7216 | 8404-2016 | L-SERIES ITB, 43MM SEALED, N/C, RH, POS CNTRL W/O CAN, GECO STOIC | 43 | - | - | - | - | |
8404-7217 | 8404-2017 | L-SERIES ITB, 50MM SEALED, N/C, RH, POS CNTRL W/O CAN, GECO STOIC | 50 | - | - | - | - |

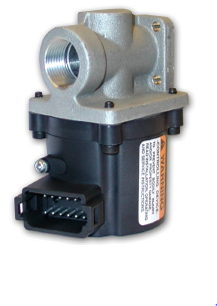

SELECTION CHART ITB TRIM
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
8404-7303 | 8404-3003 | L-SERIES TRIM VALVE, 16MM POS CNTRL W/O CAN, GENERAL | 16 | - | - | - | - | |
8404-7304 | 8404-3004 | L-SERIES TRIM VALVE, 22MM, POS CNTRL W/O CAN, GENERAL | 22 | - | - | - | - |
SELECTION CHART LC50 Position
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
8404-7427 | 8404-4027 | L-SERIES LC50, 25MM ITB, 27MM X-MIX, POS CTRL, DFLT PMTRS | 25 | - | - | - | - | |
- | - | - | 30 | - | - | - | - | |
8404-7428 | 8404-4028 | L-SERIES LC50, 36MM ITB, 34MM X-MIX, POS CTRL,DFLT PMTRS | 36 | - | - | - | - | |
8404-7435 | 8404-4035 | L-SERIES LC50, 43MM ITB, 40MM X-MIX, WITHOUT MAS, POS CTRL, DFLT PMTRS | 43 | - | - | - | - | |
8404-4016 | L-SERIES LC50, 50MM ITB SEALED, 47MM X-MIX, WITHOUT MAS, SPD CTRL, DFLT PMTRS | 50 | - | - | - | - |
SELECTION CHART LC50 Position + MAS
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
- | 8404-4012 | L-SERIES LC50, 25MM ITB, 27MM X-MIX, MAS, POS CTRL, DFLT PMTRS | 25 | - | - | - | - | |
- | - | - | 30 | - | - | - | - | |
- | 8404-4015 | L-SERIES LC50, 36MM ITB, 34MM X-MIX, MAS, PWM POS CTRL, CUST PMTRS | 36 | - | - | - | - | |
- | 8404-4031 | L-SERIES LC50, 43MM ITB, 40MM X-MIX, MAS, POS CTRL, DFLT PMTRS | 43 | - | - | - | - | |
8404-7417 | 8404-4017 | L-SERIES LC50, 50MM ITB SEALED, 47MM X-MIX, MAS, POS CTRL, DFLT PMTRS | 50 | - | - | - | - |
The Woodward L-Series Process controller incorporated into the actuator, creating a single integrated package. This eliminates the need for an additional driver box and A/F ratio control box. The L-Series process controller accepts a process input signal (e.g., O2, Diff Press, etc.), compares this to the process setpoint, and drives the 0- 60 degree output shaft to the commanded position based on an internal shaft position sensor.
The L-series process controller is not available as a stand alone actuator but as a trim valve or a ITB valve. The ITB will be necessary for high gas flow application, necessary with biogas or for high power output. Sealed ITB bodies are gas tight up to 2bar gas pressure, unsealed valves up to 500mbar.
ITB | LC50 | Trim valve ITB | |
---|---|---|---|
Integrated throttle | Integrated throttle body plus mixer | For adjustments of airfuel ratio (AFR) | |
SELECTION CHART ITB Process dflt - N/O
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
8404-7248 | 8404-2035 | L-SERIES ITB, 25MM SEALED, N/O, RH, PRCS CNTRL W/O CAN, GENERAL | 25 | - | - | - | - | |
- | - | - | 30 | - | - | - | - | |
8404-7250 | 8404-2047 | L-SERIES ITB, 36MM SEALED, N/O, RH, PRCS CNTRL (SETPOINT) W/O CAN, GENERAL | 36 | - | - | - | - | |
- | 8404-2043 | L-SERIES ITB, 43MM SEALED, PROCESS CTRL, DFLT PMTRS | 43 | - | - | - | - | |
- | 8404-2025 | L-SERIES ITB, 50MM SEALED, PROCESS CTRL, DFLT PMTRS | 50 | - | - | - | - |
SELECTION CHART ITB Process dflt - N/C
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
8404-7248 | 8404-2035 | L-SERIES ITB, 25MM SEALED, N/O, RH, PRCS CNTRL W/O CAN, GENERAL | 25 | - | - | - | - | |
- | - | - | 30 | - | - | - | - | |
8404-7250 | 8404-2047 | L-SERIES ITB, 36MM SEALED, N/O, RH, PRCS CNTRL (SETPOINT) W/O CAN, GENERAL | 36 | - | - | - | - | |
- | 8404-2043 | L-SERIES ITB, 43MM SEALED, PROCESS CTRL, DFLT PMTRS | 43 | - | - | - | - | |
- | 8404-2025 | L-SERIES ITB, 50MM SEALED, PROCESS CTRL, DFLT PMTRS | 50 | - | - | - | - |
SELECTION CHART Process ITB TRIM
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
8404-7301 | 8404-3001 | L-SERIES TRIM, 16MM, PROC CNTRL W/O CAN, GENERAL | 16 | - | - | - | - | |
8404-7302 | 8404-3002 | L-SERIES TRIM, 22MM, PROC CNTRL W/O CAN, GENERAL | 22 | - | - | - | - |

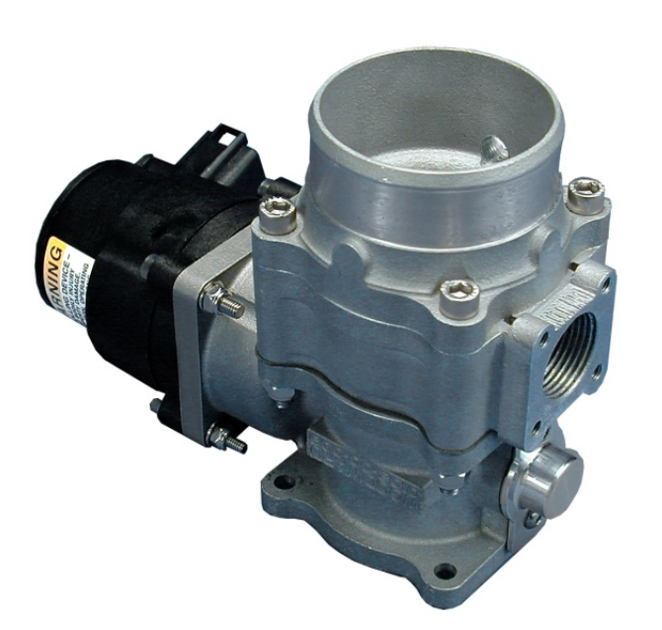

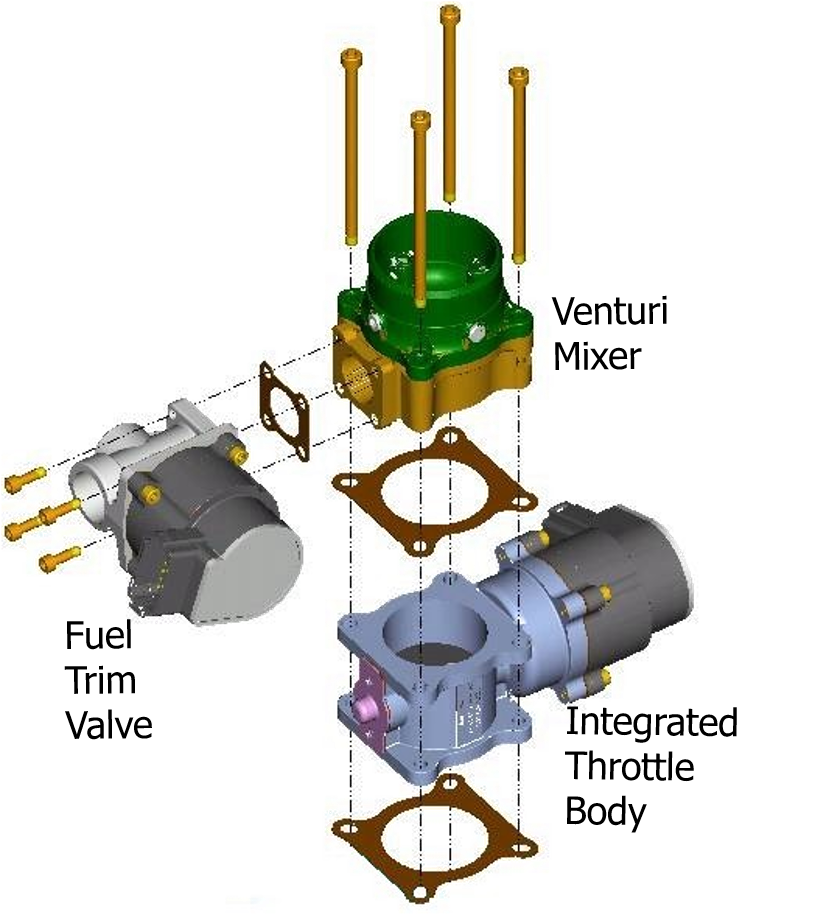

The Woodward L-Series LC50 system is a L-series ITB speed control and L-series TRIM process control with Mixer
Sealed ITB bodies are gas tight up to 2bar gas pressure, unsealed valves up to 500mbar.
SELECTION CHART LC50 system
Partnumber RoHs | Old Partnumber | Description | Throttle mm | Plan | With CAN | |||
---|---|---|---|---|---|---|---|---|
- | 8404-4023 | L-SERIES LC50, 30MM ITB, 30MM X-MIX, 16MM TRIM VALVE, SPD CTRL, DFLT PMTRS | 30 | - | - | - | - | |
- | 8404-4018 | L-SERIES LC50, 36MM ITB, 34MM X-MIX, 16MM TRIM VALVE, SPD CTRL, DFLT PMTRS | 36 | - | - | - | - | |
- | 8404-4020 | L-SERIES LC50, 50MM ITB, 36MM O-MIX, 22MM TRIM VALVE, SPD CTRL, DFLT PMTRS | 50 | - | - | - | - | |
- | 8404-4025 | L-SERIES LC50, 50MM ITB, 40MM X-MIX, 16MM TRIM, SPD CTRL, CPG 5.0L PMTRS | 50 | - | - | - | - | |
- | 8404-4021 | L-SERIES LC50, 50MM ITB, 47MM X-MIX, 22MM TRIM VALVE, SPD CTRL, DFLT PMTRS | 50 | - | - | - | - | |
8404-4034 | - | L-SERIES LC50, 50MM ITB [RH], 40MM X-MIX [PLAN D], 22MM TRIM [PLAN B], POS CTRL, DFLT PMTRS | 50 | - | - | - | - |
Stoichiometric AFR | Lean burn AFR | ||
---|---|---|---|
Partnumber | Description | Partnumber | Description |
HEGO Sensor | UEGO Sensor | ||
HEGO/UEGO Weld-in Insert | HEGO/UEGO Weld-in Insert |
p/n 8928-7287 replaced the obsolute p/n DL08311000.
NGK / NTK Wideband O2 Sensor ( UEGO ) LZA08-E1 Sensor + NGK TC6350/A (ZFAS-U) ( TC-6350-A ) + Cable TH-2009-W1
See applications note 51344

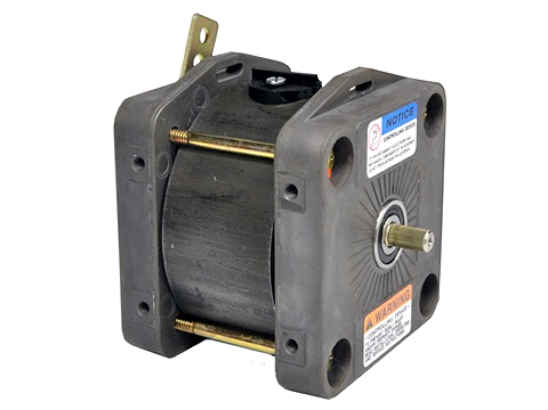

The EPG 512/524 and 1712/1724 actuator has two shaft ends, one at each side. On section A (see drawing) is a return spring. By turning the actuator by his vertical axis, the direction of operation can be changed. Therefore, no clockwise or counterclockwise version is available of standard 5XX and 17XX EPG actuators. On both ends the shaft ends are 0.375"-36 serrated.
The 512/524 and 1712/1724 EPGs are three-component governing systems for 12 or 24 Vdc operation. All EPG systems include an actuator, an electronic speed control, and magnetic pickup. Both isochronous and droop controls are available. The EPG is designed for precise speed control of diesel, gas, or gasoline engines, and gas turbines. The governor is especially suited to prime movers without a mechanical drive or hydraulic oil supply for the governor, and which have low-mass, low-friction fuel linkages.
SELECTION CHART EPG Actuators and Controls
Actuator
Partnumber RoHs | Old Partnumber | Description | Model | Voltage |
---|---|---|---|---|
- | 8256-022 | - | 512 | 12 VDC |
- | 8256-021 | - | 524 | 24 VDC |
- | 8256-017 | 1712 | 12 VDC | |
8256-032 | 8256-016 | - | 1724 | 24 VDC |
Actuator with Sealed Position Feedback
Partnumber RoHs | Old Partnumber | Description | Model | Voltage |
---|---|---|---|---|
- | 8256-089 | w/ Position Feedback-CCW output w/MS3102R-14S-7P Receptacle | 512 | 12 VDC |
- | 8256-086 | w/ Position Feedback-CW output w/MS3102R-14S-7P Receptacle | 524 | 24 VDC |
- | 8256-087 | w/ Position Feedback-CCW output w/MS3102R-14S-7P Receptacle | 524 | 24 VDC |
- | 8256-084 | w/ Position Feedback-CW output w/MS3102R-14S-7P Receptacle | 1712 | 12 VDC |
- | 8256-085 | w/ Position Feedback-CCW output w/MS3102R-14S-7P Receptacle | 1712 | 12 VDC |
- | 8256-078 | w/ Position Feedback-CW output w/MS3102R-14S-7P Receptacle | 1724 | 12 VDC |
- | 8256-079 | w/ Position Feedback-CCW output w/ MS3102R-14S-7P Receptacle | 1724 | 24 VDC |
Speed Control (Isochronous)
The following part numbers represent a 3000-6000 Hz range; contact Turner ECS for part numbers of different speed ranges.Partnumber RoHs | Old Partnumber | Description | Model | Voltage |
---|---|---|---|---|
- | 8290-186 | 512 or 1712 SC for Diesel or Turbine, w/ Start Fuel Limit | - | 12 VDC |
- | 8290-187 | 512 or 1712 SC for Natural Gas or Gasoline, w/ Start Fuel Limit | - | 12 VDC |
- | 8290-184 | 524 or 1724 SC for Diesel or Turbine, w/ Start Fuel Limit | - | 24 VDC |
- | 8290-185 | 524 or 1724 SC for Natural Gas or Gasoline, w/ Start Fuel Limit | - | 24 VDC |
Speed Control (Droop) For 512/524 and 1712/1724 Series Systems
The following part numbers represent a 3000-6000 Hz range; contact Turner ECS for part numbers of different speed ranges.Partnumber RoHs | Old Partnumber | Description | Model | Voltage |
---|---|---|---|---|
- | 8290-192 | Diesel or Turbine | - | 12 VDC |
8290-216 | 8290-191 | Diesel or Turbine | 24 VDC | |
- | 8290-045 | Natural Gas or Turbine | - | 24 VDC |
Speed Control With Position Feedback
Partnumber RoHs | Old Partnumber | Description | Model | Voltage |
---|---|---|---|---|
- | 8290-103 | 524 or 1724 Speed Control, Diesel or Natural Gas Engines | - | 24 VDC |
- | 8290-149 | 4024 Speed Control, Diesel or Natural Gas Engines | - | 24 VDC |
EPG Actuator Driver For EPG Actuator with Position Feedback
The following part numbers represent the controls that drive the EPG 512/524, 1712/1724 and 4024 Actuators with a 1-5 Vdc, 4-20 mA, or 20-160 mA signal source.Partnumber RoHs | Old Partnumber | Description | Model | Voltage |
---|---|---|---|---|
- | 8290-136 | 512 or 1712 Actuator Driver, 1-5 Vdc or 4-20 mA input | - | 12 VDC |
- | 8290-135 | 512 or 1712 Actuator Driver, 20-160 mA input | - | 12 VDC |
- | 8290-133 | 524 or 1724 Actuator Driver, 1-5 Vdc or 4-20 mA input | - | 24 VDC |
- | 8290-134 | 524 or 1724 Actuator Driver, 20-160 mA input | - | 24 VDC |
- | 8290-153 | 4024 Actuator Driver. 1-5 Vdc or 4-20 mA input | - | 24 VDC |
SELECTION CHART EPG Actuators Kits
Partnumber | Description | Actuator | Model | Manufactor |
---|---|---|---|---|
8924-610 | 512/524 TO JD4219D, 4239D,T | 1712 | JD4219D, 4239D | John Deere |
8924-612 | 1712 TO JD6466A | 1712 | JD6466A | John Deere |
8923-387 | KIT-DD 1724 ACTUATOR L-71 | 1724 | L-71 | Detroit Diesel |
8923-310 | KIT-DD 1724 ACTUATOR V71/92 | 1724 | V71/92 | Detroit Diesel |
8924-586 | 1724 EA TO DDV-71, V-92 | 1724 | V-71, V-92 | Detroit Diesel |
8924-591 | 1724 TO DDI71 W/LH EXHAUST | 1724 | L 71 | Detroit Diesel |
8924-944 | DDC L71/V71/V92 1724 SPEED | 1724 | L71/V71/V92 | Detroit Diesel |
8924-590 | 1724 EA TO PERKINS 4.236 | 1724 | 4.236 | PERKINS |
8924-593 | 1724EA TO PERKINS 6.354 | 1724 | 6.354 | PERKINS |
8924-597 | 1724 EA TO PERKINS 3.152 | 1724 | 3.152 | PERKINS |
8924-600 | 1724EA TO CAT 3406 | 1724 | 3406 | CATERPILLAR |
8924-601 | 1724 EA TO CAT 3304, 3306 | 1724 | 3304, 3306 | CATERPILLAR |
8924-603 | 1724 EPG TO CAT 3408/3412 ENG | 1724 | 3408, 3412 | CATERPILLAR |
8924-608 | 1724 EA TO CAT 3208 | 1724 | 3208 | CATERPILLAR |
8924-605 | 1724 EA TO CUMMINS K-1150 | 1724 | K-1150 | CUMMINS |
8924-606 | 1724 EA TO CUMMINS V-1710 | 1724 | V-1710 | CUMMINS |
8924-607 | 1724 EA TO CUMMMINS K-2300 | 1724 | K-2300 | CUMMINS |
8924-613 | 1724 EA TO DORMAN 6Q | 1724 | 6Q | DORMAN |
8924-614 | 1724 EA TO DORMAN 12Q | 1724 | 12Q | DORMAN |
8924-867 | 1712/1724 EPG TO RQ GOV HSG | 1724 | - | - |

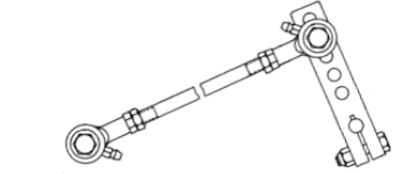

EPG Actuator Linkage and Lever
Partnumber | Description |
---|---|
8924-370 | Linkage kit contains: rod ⌀ .312" x 420mm, ball joints, nuts, lever 3979-007 |

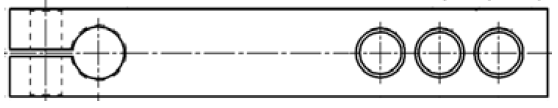

3979-007 | Lever, 75 mm ( 5 x 7.92mm holes) |
3960-059 | Lever, 75 mm (12 x 6.5mm holes) |
EPG Actuator Feedback connector
Partnumber | Description |
---|---|
MS3106R 14S-7S | 3 Pin Straight Plug, 14S Shell Size |
MS3108R 14S-7S | 3 Pin Right Angle Plug, 14S Shell Size |

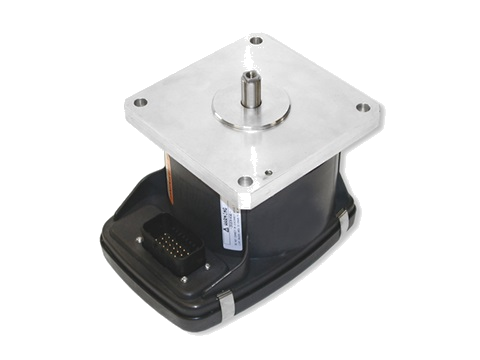

The F-Series Modular Actuator is an electric bi-directional actuator with an integral driver. The F-Series Modular Actuator is designed to be engine-mounted for various position control functions on reciprocating engines used in industrial and on-highway service.
The actuator accepts a position demand signal from a master controller and drives the 0-70 degree output shaft to the demanded position based on an internal shaft position sensor. The actuator can accept a PWM, J1939 CAN, 4-20 mA, or 0-5 V position demand signal. The electric actuator requires no hydraulics, pneumatics, or gear train.Name | Actuator models | Product Compliance |
F-series | FSTP | EAC CU/GOST-R,ECE,EMC,MD,PE, CSA |
Partnumber RoHs | Old Partnumber | Description | Mounting | Model |
---|---|---|---|---|
- | 8235-600 | CONTROL-F-SERIES ACT, 23-PIN, STD-MNT, STD-SHFT, DFLT PMTRS, NO SPRING | STD-MNT | FSTP |
8245-023 | 8235-716 | CONTROL-F-SERIES ACT, 23-PIN, PROACT-MNT, STD-SHFT, DFLT PMTRS, NO SPRING | PROACT-MNT | FSTP |
- | 8235-636 | CONTROL-F-SERIES ACT, 23-PIN, STD-MNT, STD-SHFT, WAUKESHA PMTRS, NO SPRING | STD-MNT | FSTP |
8245-001 | CONTROL-F-SERIES ACT, 23-PIN, STD-MNT, STD-SHFT, NO SPRING, IMPROVED IP, DEFAULT PMTRS | STD-MNT | FSTP | |
8245-005 | CONTROL-F-SERIES ACT, 23-PIN, STD-MNT, STD-SHFT, NO SPRING, IMPROVED IP, DEUTZ PMTRS | STD-MNT | FSTP |
F-Series Actuator Levers
Partnumber | Description |
---|---|
2140-1010 | Lever, F-SERIES ACTUATOR OUTPUT, STAMPED |
F-series Actuator connector
Partnumber | Description |
---|---|

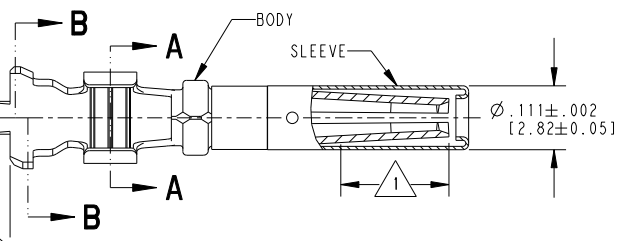

8923-1312 | F-SERIES 23-PIN MATING CONNECTOR (1608-1044 [25x CONTACT-AMP SEAL SOCKET, GOLD-PLATED] + 1751-805 [CONNECTOR-PLUG 23 POSITION SEALED, amp 770680-1]) |

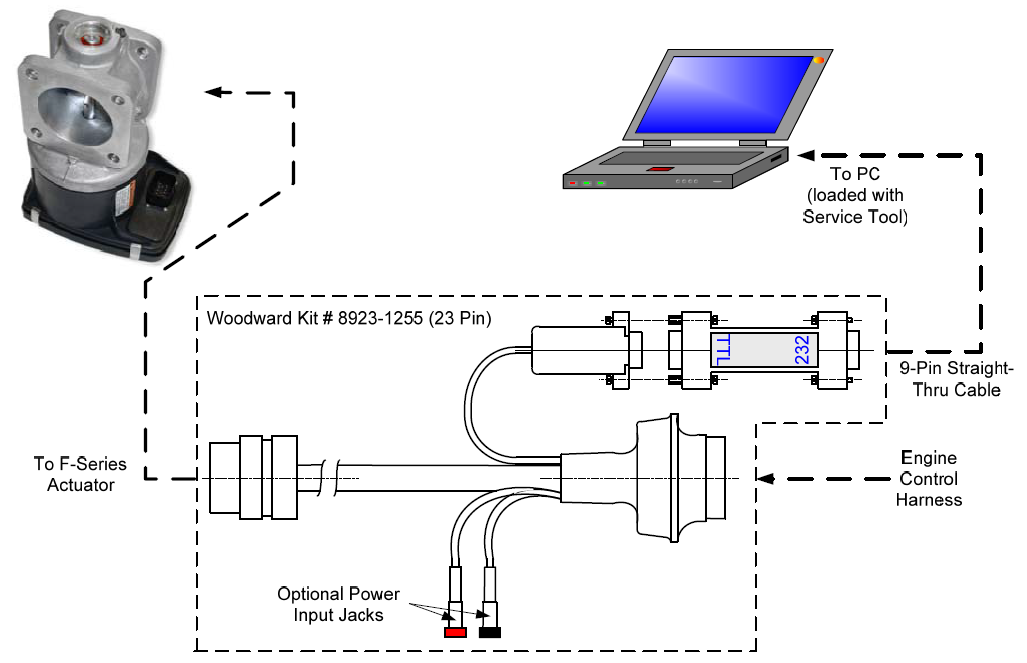

F-SERIES COMMUNICATION HARDWARE, 23 PIN
Partnumber | Description |
---|---|
8923-1255 | F-SERIES COMMUNICATION HARDWARE, 23 PIN. (5450-1166 [CABLE-F-SERIES COMMUNICATION, 23 PIN] + 1249-1039 [ADAPTER-RS232 TO TTL/CMOS CONVERTER]) |
Name | Actuator models | Throttle dimensions |
F-Series | FST, FSTP | 33 mm, 48 mm, 60 mm , 68 mm, 75 mm |
Partnumber RoHs | Old Partnumber | Description | Throttle | Model | Plan |
---|---|---|---|---|---|
8235-623 | VALVE-F-SERIES ITB, 14-PIN-A, 48MM-STD, DEFAULT SCH, N/C (HCS12) | 48 mm | FST | A | |
8235-625 | VALVE-F-SERIES ITB, 14-PIN-A, 60MM-STD, DEFAULT SCH, N/C (HCS12) | 60 mm | FST | A | |
8235-627 | VALVE-F-SERIES ITB, 14-PIN-A, 68MM-STD, DEFAULT SCH, N/C (HCS12) | 68 mm | FST | A | |
8235-657 | VALVE-F-SERIES ITB, 14-PIN-A, 75MM, N/C (HCS12) | 75 mm | FST | A |
Partnumber RoHs | Old Partnumber | Description | Throttle | Model | Plan |
---|---|---|---|---|---|
8245-042 | 8235-661 | VALVE-F-SERIES ITB, 23-PIN-D, 33MM-STD, IMPROVED IP, 4~20MA, N/C | 33 mm | FSTP | A |
8245-002 | 8235-602 | VALVE-F-SERIES ITB, 23-PIN-A, 48MM-STD-DIE, N/C, IMPROVED IP, DEFAULT PMTRS | 48 mm | FSTP | A |
8245-003 | 8235-606 | VALVE-F-SERIES ITB, 23-PIN-A, 60MM-STD-DIE, N/C, IMPROVED IP, DEFAULT PMTRS | 60 mm | FSTP | A |
8245-004 | 8235-610 | VALVE-F-SERIES ITB, 23-PIN-A, 68MM-STD-DIE, N/C, IMPROVED IP, DEFAULT PMTRS | 68 mm | FSTP | A |
8245-020 | 8235-659 | VALVE-F-SERIES ITB, 23-PIN-A, 75MM, N/C, IMPROVED IP, FLOTECH PMTRS, 4~20MA | 75 mm | FSTP | A |
Partnumber RoHs | Old Partnumber | Description | Throttle | Model | Plan |
---|---|---|---|---|---|
8245-043 | 8235-696 | VALVE-F-SERIES ITB, 23-PIN-B, 33MM-STD, IMPROVED IP, FLOTECH SCH, N/O | 33 mm | FSTP | A |
8245-033 | 8235-620 | VALVE-F-SERIES ITB, 23-PIN-B, 48MM-STD-DIE, N/O, IMPROVED IP, FLOTECH PMTRS | 48 mm | FSTP | A |
8245-026 | 8235-669 | VALVE-F-SERIES ITB, 23-PIN-A, 60MM-STD-DIE, N/O, IMPROVED IP, FLOTECH PMTRS | 60 mm | FSTP | A |
8245-018 | 8235-622 | VALVE-F-SERIES ITB, 23-PIN-A, 68MM-STD-DIE, N/O, IMPROVED IP, FLOTECH PMTRS | 68 mm | FSTP | A |
F-series Actuator connector
Partnumber | Description |
---|---|

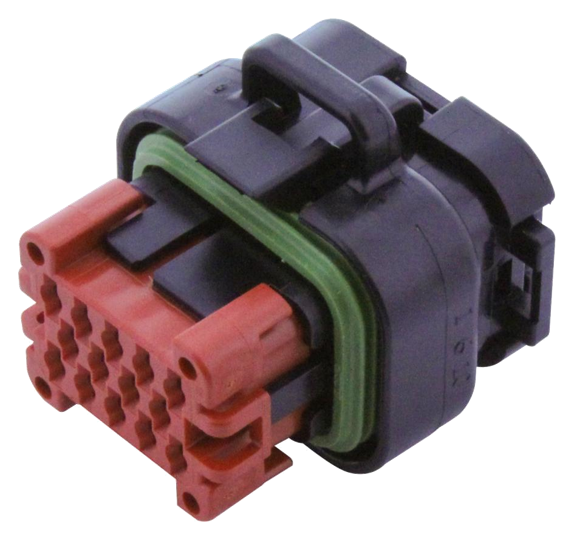

8923-1311 | F-SERIES (FST) 14-PIN MATING CONNECTOR (1608-1044 [16x CONTACT-AMP SEAL SOCKET, GOLD-PLATED] + 1635-1517 [CONNECTOR-AMPSEAL 14-PIN SEALED PLUG, AMP# 776273-1]) |
8923-1312 | F-SERIES (FSTP) 23-PIN MATING CONNECTOR (1608-1044 [25x CONTACT-AMP SEAL SOCKET, GOLD-PLATED] + 1751-805 [CONNECTOR-PLUG 23 POSITION SEALED, AMP# 770680-1]) |

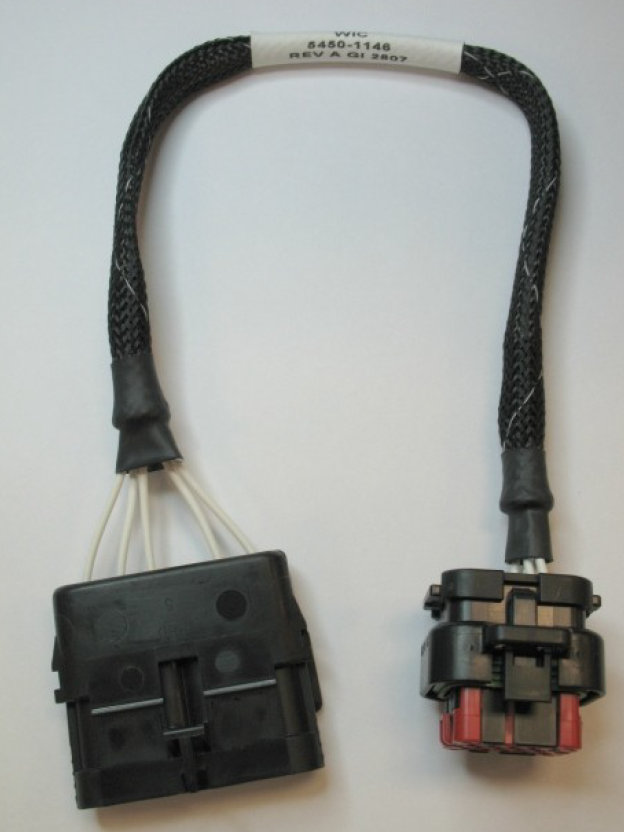

F-SERIES COMMUNICATION HARDWARE HARNASS
Partnumber | Description |
---|---|
8923-1254 | F-SERIES (FST) COMMUNICATION HARDWARE, 14 PIN. (5450-1165 [CABLE-F-SERIES COMMUNICATION, 14 PIN] + 1249-1039 [ADAPTER-RS232 TO TTL/CMOS CONVERTER]) |
8923-1255 | F-SERIES (FSTP) COMMUNICATION HARDWARE, 23 PIN. (5450-1166 [CABLE-F-SERIES COMMUNICATION, 23 PIN] + 1249-1039 [ADAPTER-RS232 TO TTL/CMOS CONVERTER]) |
Partnumber RoHs | Old Partnumber | Description | Throttle | Model | Plan | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-470 | F-SERIES ITB, 23-PIN-B, 33MM-STD,CUMMINS SCH, N/O COMPRESS BYPASS OLYMPIC, W/ CONNECTOR CLAMP | 33 mm | FSTP | B | STD | - |
- | 8235-661 | F-SERIES ITB, 23-PIN-A, 33MM-STD, 4~20MA, N/C | 33 mm | FSTP | A | STD | - |
- | 8235-682 | F-SERIES ITB, 23-PIN-B, 33MM-STD,CUMMINS SCH, N/O COMPRESS BYPASS OLYMPIC | 33 mm | FSTP | B | STD | - |
- | 8235-692 | F-SERIES ITB, 23-PIN-A, 33MM-STD, DEFAULT, N/C ( CUMMINS) | 33 mm | FSTP | A | STD | - |
- | 8235-693 | F-SERIES ITB, 23-PIN-D, 33MM-STD, 4~20MA, N/C | 33 mm | FSTP | D | STD | - |
- | 8235-696 | F-SERIES ITB, 23-PIN-B, 33MM-STD, FLOTECH SCH, N/O | 33 mm | FSTP | B | STD | - |
- | 8235-710 | F-SERIES ITB, 23-PIN-A, 33MM-STD, DEFAULT SCH, N/O ( CUMMINS) | 33 mm | FSTP | A | STD | - |
8245-027 | - | F-SERIES ITB, 23-PIN-A, 33MM-STD-PM, N/C, IMPROVED IP, GENERAL PMTRS, 4~20MA | 33 mm | FSTP | A | STD | - |
8245-041 | - | F-SERIES ITB, 23-PIN-A, 33MM-STD, IMPROVED IP, DEFAULT, N/C ( CUMMINS) | 33 mm | FSTP | A | STP | - |
8245-042 | - | F-SERIES ITB, 23-PIN-D, 33MM-STD, IMPROVED IP, 4~20MA, N/C | 33 mm | FSTP | D | STD | - |
8245-043 | - | F-SERIES ITB, 23-PIN-B, 33MM-STD, IMPROVED IP, FLOTECH SCH, N/O | 33 mm | FSTP | B | STD | - |
8245-045 | - | F-SERIES ITB, 23-PIN-A, 33MM-STD, IMPROVED IP, DEFAULT SCH, N/O ( CUMMINS) | 33 mm | FSTP | A | STD | - |
Partnumber RoHs | Old Partnumber | Description | Throttle | Model | Plan | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-602 | F-SERIES ITB, 23-PIN-A, 48MM-STD, DEFAULT SCH, N/C | 48 mm | FSTP | A | STD | - |
- | 8235-620 | F-SERIES ITB, 23-PIN-A, 48MM-STD, Jenbacher, FLOTECH SCH, N/O | 48 mm | FSTP | A | STD | - |
- | 8235-621 | F-SERIES ITB, 23-PIN-B, 48MM-STD, Jenbacher, FLOTECH SCH, N/O | 48 mm | FSTP | B | STD | - |
- | 8235-623 | F-SERIES ITB, 14-PIN-A, 48MM-STD, DEFAULT SCH, N/C (HCS12) | 48 mm | FST | A | STD | PWM |
- | 8235-624 | F-SERIES ITB, 14-PIN-B, 48MM-M08, FLOTECH SCH, N/C (HCS12) | 48 mm | FST | B | M08 | PWM |
- | 8235-668 | F-SERIES ITB, 23-PIN-B, 48MM-STD, FLOTECH SCH, N/O | 48 mm | FSTP | B | STD | - |
- | 8235-689 | F-SERIES ITB, 23-PIN-C, 48MM-STD, GUASCOR, N/O | 48 mm | FSTP | C | STD | - |
- | 8235-697 | F-SERIES ITB, 23-PIN-C 48MM-STD, CUMMINS SCH, N/C, OSPREY FMV | 48 mm | FSTP | C | STD | - |
- | 8235-703 | F-SERIES ITB, 23-PIN-A, 48MM-STD, FLOTECH SCH, N/C (CUMMINS HITEMP GRAPHITE) | 48 mm | FSTP | A | STD | - |
- | 8235-705 | F-SERIES ITB, 23-PIN-B, 48MM-STD, WAUKESHA PMTRS, N/O | 48 mm | FSTP | B | STD | - |
- | 8235-713 | F-SERIES ITB, 23-PIN-C, 48MM-STD, DEFAULT SCH, N/O (CUMMINS CONDOR COMPRESSOR BYPASS) | 48 mm | FSTP | C | STD | - |
8245-002 | - | F-SERIES ITB, 23-PIN-A, 48MM-STD-DIE, N/C, IMPROVED IP, DEFAULT PMTRS | 48 mm | FSTP | A | STD | - |
8245-006 | - | F-SERIES ITB, 23-PIN-B, 48MM-STD-DIE, N/O, IMPROVED IP, WAUKESHA PMTRS | 48 mm | FSTP | B | STD | - |
8245-010 | - | F-SERIES ITB, 23-PIN-C, 48MM-M8WIDE-PM, N/O, IMPROVED IP, CUMMINS INSITE BYPASS | 48 mm | FSTP | C | M08 | - |
8245-011 | - | F-SERIES ITB, 23-PIN-A, 48MM-M8WIDE-PM, N/C, IMPROVED IP, CUMMINS INSITE FCV | 48 mm | FSTP | A | M08 | - |
8245-012 | - | F-SERIES ITB, 23-PIN-A, 48MM-STD-DIE, N/O, IMPROVED IP, NARROW SEALS, JENBACHER | 48 mm | FSTP | A | STD | - |
8245-013 | - | F-SERIES ITB, 23-PIN-B, 48MM-STD-DIE, N/O, IMPROVED IP, NARROW SEALS, JENBACHER | 48 mm | FSTP | B | STD | - |
8245-015 | - | F-SERIES ITB, 23-PIN-C, 48MM-STD-DIE, N/O, IMPROVED IP, GUASCOR PMTRS | 48 mm | FSTP | C | STD | - |
8245-021 | - | F-SERIES ITB, 23-PIN-C, 48MM-STD-DIE, N/C, IMPROVED IP, CUMMINS OSPREY FMV PMTRS | 48 mm | FSTP | C | STD | - |
8245-029 | - | F-SERIES ITB, 23-PIN-C, 48MM-M8WIDE-PM, N/O, IMPROVED IP, CUMMINS COMPRESSOR BYPASS | 48 mm | FSTP | C | M08 | - |
8245-031 | - | F-SERIES ITB, 23-PIN-A, 48MM-STD-DIE, N/C, IMPROVED IP, CUMMINS HI-TEMP STANDBY FLOTECH PMTRS | 48 mm | FSTP | A | STD | - |
8245-032 | - | F-SERIES ITB, 23-PIN-C, 48MM-STD-DIE, N/O, IMPROVED IP, CUMMINS CONDOR COMPRESSOR BYPASS PMTRS | 48 mm | FSTP | C | STD | - |
8245-033 | - | F-SERIES ITB, 23-PIN-B, 48MM-STD-DIE, N/O, IMPROVED IP, FLOTECH PMTRS | 48 mm | FSTP | B | STD | - |
8245-034 | - | F-SERIES ITB, 23-PIN-A, 48MM-M08, IMPROVED IP, DEFAULT SCH, N/C | 48 mm | FSTP | A | M08 | - |
8245-038 | - | F-SERIES ITB, 23-PIN-D 48MM-STD, IMPROVED IP, CUMMINS SCH, N/C, OSPREY FMV | 48 mm | FSTP | D | STD | - |
8245-044 | - | F-SERIES ITB, 23-PIN-A, 48MM-WIDE M08, IMPROVED IP, DEFAULT SCH, N/C (CUMMINS FUEL CONTROL) | 48 mm | FSTP | A | M08 | - |
8245-052 | - | F-SERIES ITB, 23-PIN-A, 48MM-STD-DIE, N/C, IMPROVED IP, MTU CAN PMTRS | 48 mm | FSTP | A | STD | - |
Partnumber RoHs | Old Partnumber | Description | Throttle | Model | Plan | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-606 | F-SERIES ITB, 23-PIN-A, 60MM-STD, DEFAULT SCH, N/C | 60 mm | FSTP | A | STD | - |
- | 8235-608 | F-SERIES ITB, 23-PIN-A, 60MM-JADE, DEFAULT SCH, N/C | 60 mm | FSTP | A | JADE | - |
- | 8235-625 | F-SERIES ITB, 14-PIN-A, 60MM-STD, DEFAULT SCH, N/C (HCS12) | 60 mm | FST | A | STD | PWM |
- | 8235-626 | F-SERIES ITB, 14-PIN-A, 60MM-JADE, FLOTECH SCH, N/C (HCS12) | 60 mm | FST | A | JADE | PWM |
- | 8235-630 | F-SERIES ITB, 14-PIN-A, 60MM-STD, FLOTECH SCH, N/C (HCS12) | 60 mm | FST | A | STD | PWM |
- | 8235-632 | F-SERIES ITB, 14-PIN-A, 60MM-M10, FLOTECH SCH, N/C (HCS12) | 60 mm | FST | A | M10 | PWM |
- | 8235-634 | F-SERIES ITB, 14-PIN-B, 60MM-STD, FLOTECH SCH, N/C (HCS12) | 60 mm | FST | B | STD | PWM |
- | 8235-647 | F-SERIES ITB, 14-PIN-D, 60MM-STD, FLOTECH SCH, N/C (HCS12) | 60 mm | FST | D | STD | PWM |
- | 8235-669 | F-SERIES ITB, 23-PIN-A, 60MM-STD, FLOTECH SCH, N/O | 60 mm | FSTP | A | STD | - |
- | 8235-673 | F-SERIES ITB, 14-PIN-A, 60MM-M10, FLOTECH SCH, N/C (HCS12) | 60 mm | FST | B | M10 | PWM |
- | 8235-677 | F-SERIES ITB, 14-PIN-B, 60MM-STD, FLOTECH SCH, N/C (WEICHAI WESTPORT) | 60 mm | FST | B | STD | PWM |
- | 8235-679 | F-SERIES ITB, 14-PIN-D, 60MM-STD, FLOTECH SCH, N/C (WEICHAI WESTPORT) | 60 mm | FST | D | STD | PWM |
- | 8235-695 | F-SERIES ITB, 14-PIN-B, 60MM-JADE, FLOTECH SCH, N/C (HCS12) | 60 mm | FST | B | JADE | PWM |
- | 8235-715 | F-SERIES ITB, 23-PIN-C, 60MM-STD, N/O (CUMMINS CONDOR COMPRESSOR BYPASS) | 60 mm | FSTP | C | STD | - |
- | 8235-720 | F-SERIES ITB, 23-PIN-A, 60MM-STD-DIE, N/O, SIEMENS PMTRS | 60 mm | FSTP | A | STD | - |
8245-003 | - | F-SERIES ITB, 23-PIN-A, 60MM-STD-DIE, N/C, IMPROVED IP, DEFAULT PMTRS | 60 mm | FSTP | A | STD | - |
8245-008 | - | F-SERIES ITB, 23-PIN-A, 60MM-M8WIDE-PM, N/C, IMPROVED IP, CUMMINS INSITE | 60 mm | FSTP | A | M08 | - |
8245-016 | - | F-SERIES ITB, 23-PIN-A, 60MM-STD-DIE, N/O, IMPROVED IP, SIEMENS FLOTECH PMTRS | 60 mm | FSTP | A | STD | - |
8245-022 | - | F-SERIES ITB, 23-PIN-A, 60MM-STD, IMPROVED IP, DEFAULT SCH, N/C ( CUMMINS) | 60 mm | FSTP | A | STD | - |
8245-026 | - | F-SERIES ITB, 23-PIN-A, 60MM-STD-DIE, N/O, IMPROVED IP, FLOTECH PMTRS | 60 mm | FSTP | A | STD | - |
8245-035 | - | F-SERIES ITB, 23-PIN-A, 60MM-JADE, IMPROVED IP, DEFAULT SCH, N/C | 60 mm | FSTP | A | JADE | - |
8245-037 | - | F-SERIES ITB, 23-PIN-A, 60MM-STD, IMPROVED IP, FLOTECH SCH, N/C (CUMMINS HITEMP STANDBY APP) | 60 mm | FSTP | A | STD | - |
8245-046 | - | F-SERIES ITB, 23-PIN-C, 60MM-STD, IMPROVED IP, N/O (CUMMINS CONDOR COMPRESSOR BYPASS) | 60 mm | FSTP | C | STD | - |
8245-048 | - | F-SERIES ITB, 23-PIN-D, 60MM-STD-DIE, N/O, IMPROVED IP, WAUKESHA VGF P48 PMTRS | 60 mm | FSTP | A | STD | - |
Partnumber RoHs | Old Partnumber | Description | Throttle | Model | Plan | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-627 | F-SERIES ITB, 14-PIN-A, 68MM-STD, DEFAULT SCH, N/C (HCS12) | 68 mm | FST | A | STD | PWM |
- | 8235-631 | F-SERIES ITB, 14-PIN-A, 68MM-STD, FLOTECH SCH, N/C (HCS12) | 68 mm | FST | A | STD | PWM |
- | 8235-639, 8235-678 | F-SERIES ITB, 14-PIN-B, 68MM-STD, FLOTECH SCH, N/C (HCS12) | 68 mm | FST | B | STD | PWM |
8245-004 | 8235-610 | F-SERIES ITB, 23-PIN-A, 68MM-STD-DIE, N/C, IMPROVED IP, DEFAULT PMTRS | 68 mm | FSTP | A | STD | 0-20 mA |
- | 8235-622 | F-SERIES ITB, 23-PIN-A, 68MM-STD, FLOTECH SCH, N/O | 68 mm | FSTP | A | STD | 0-20 mA |
- | 8235-612 | VALVE-F-SERIES ITB, 23-PIN-D, 68MM-M10, FLOTECH SCH, N/C, WAUKESHA | 68 mm | FST | D | M10 | PWM |
- | 8235-618 | F-SERIES ITB, 14-PIN-A, 68MM-M10, FLOTECH SCH, N/C (HCS12) | 68 mm | FST | A | STD | PWM |
8235-628 | F-SERIES ITB, 14-PIN-A, 68MM-M10, DEFAULT SCH, N/C (HCS12) | 68 mm | FST | A | M-10 | PWM | |
8235-635 | VALVE-F-SERIES ITB, 23-PIN-B, 68MM-STD, FLOTECH SCH, N/C | 68 mm | FST | B | STD | - | |
8235-684 | 8235-628 | F-SERIES ITB, 14-PIN-A, 68MM-M10-DIE, N/C, IMPROVED IP, FLOTECH SCH (HCS12) | 68 mm | FST | A | M-10 | PWM |
8245-030 | F-SERIES ITB, 23-PIN-B, 68MM-STD-DIE, N/C, IMPROVED IP, FLOTECH PMTRS | 68 mm | FSTP | B | STD | 0-20 mA | |
- | 8235-665 | F-SERIES ITB, 23-PIN-B, 68MM-STD, CUMMINS, N/C | 68 mm | FSTP | B | STD | - |
- | 8235-688 | F-SERIES ITB, 23-PIN-A, 68MM-STD, 4~20MA DFLT SCH, N/C (GUASCOR) | 68 mm | FSTP | A | STD | 4-20 mA |
- | 8235-694 | F-SERIES ITB, 23-PIN-B, 68MM-STD,CUMMINS DUEL FUEL, N/C | 68 mm | FSTP | B | STD | - |
- | 8235-711 | F-SERIES ITB, 23-PIN-D, 68MM-M10, N/C, WAUKESHA PMTRS | 68 mm | FSTP | D | M10 | - |
- | 8235-717 | F-SERIES ITB, 23-PIN-A, 68MM-STD, MTU CONFIG, N/C | 68 mm | FSTP | A | STD | - |
8245-009 | - | F-SERIES ITB, 23-PIN-A, 68MM-M8WIDE-PM, N/C, IMPROVED IP, CUMMINS INSITE | 68 mm | FSTP | A | M08 | - |
8245-014 | - | F-SERIES ITB, 23-PIN-B, 68MM-STD-DIE, N/C, IMP IP, CUMMINS HI-TEMP STBY FLOTECH | 68 mm | FSTP | B | STD | - |
8245-017 | - | F-SERIES ITB, 23-PIN-B, 68MM-STD-DIE, N/C, IMPROVED IP, CUMMINS FLOTECH PMTRS | 68 mm | FSTP | B | STD | - |
8245-018 | - | F-SERIES ITB, 23-PIN-A, 68MM-STD-DIE, N/O, IMPROVED IP, FLOTECH PMTRS | 68 mm | FSTP | A | STD | - |
8245-019 | - | F-SERIES ITB, 23-PIN-D, 68MM-M10, IMPROVED IP, N/C, WAUKESHA PMTRS | 68 mm | FSTP | D | M10 | - |
8245-025 | - | F-SERIES ITB, 23-PIN-D, 68MM-M10-DIE, N/C, IMPROVED IP, WAUKESHA FLOTECH PMTRS | 68 mm | FSTP | D | M10 | - |
8245-039 | - | F-SERIES ITB, 23-PIN-A, 68MM-STD, IMPROVED IP, CUMMINS SCH, N/C OLYMPIC FMV | 68 mm | FSTP | A | STD | - |
8245-040 | - | F-SERIES ITB, 23-PIN-A, 68MM-STD, IMPROVED IP, 4~20MA DFLT SCH, N/C (GUASCOR) | 68 mm | FSTP | A | STD | 4-20 mA |
8245-047 | - | F-SERIES ITB, 23-PIN-A, 68MM-STD, IMPROVED IP, MTU CONFIG, N/C | 68 mm | FSTP | A | STD | - |
8245-051 | - | F-SERIES ITB, 23-PIN-A, 68MM-STD-DIE, N/C, IMPROVED IP, MTU CAN PMTRS | 68 mm | FSTP | A | STD | 4-20 mA |
Partnumber RoHs | Old Partnumber | Description | Throttle | Model | Plan | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-657 | F-SERIES ITB, 14-PIN-A, 75MM, N/C (HCS12) | 75 mm | FST | A | STD | PWM |
- | 8235-721 | F-SERIES ITB, 14-PIN-C, 75MM, N/C (HCS12) | 75 mm | FST | C | STD | PWM |
8245-020 | - | F-SERIES ITB, 23-PIN-A, 75MM, N/C, IMPROVED IP, FLOTECH PMTRS, 4~20MA | 75 mm | FSTP | A | STD | 0-20 mA |
- | 8235-659 | F-SERIES ITB, 23-PIN-A, 75MM, 4~20MA, N/C | 75 mm | FSTP | A | STD | 4-20 mA |
- | 8235-685 | F-SERIES ITB, 23-PIN-A, 75MM, PWM, N/C (GUASCOR) | 75 mm | FSTP | A | STD | - |
- | 8235-686 | F-SERIES ITB, 23-PIN-A, 75MM, 0-5V, N/C, (GUASCOR) | 75 mm | FSTP | A | STD | - |
8245-024 | F-SERIES ITB, 23-PIN-A, 75MM, N/C, IMPROVED IP, GUASCOR PWM PMTRS | 75 mm | FSTP | A | STD | PWM | |
8245-049 | - | F-SERIES ITB, 23-PIN-A, 75MM, N/C, IMPROVED IP, CUMMINS PWM FLOTECH PMTRS | 75 mm | FSTP | A | STD | PWM |
8245-050 | - | F-SERIES ITB, 23-PIN-A, 75MM, N/C, IMPROVED IP, GUASCOR 0-5V PMTRS | 75 mm | FSTP | A | STD | 0-5 V |
605-5344 | - | F-SERIES ITB, 23-PIN-A, 75MM, N/C, IMPROVED IP, CAT PWM PRIMARY PMTRS | 75 mm | FSTP | A | STD | PWM |
605-5345 | - | F-SERIES ITB, 23-PIN-A, 75MM, N/O, IMPROVED IP, CAT PWM PRIMARY PMTRS | 75 mm | FSTP | A | STD | PWM |
The same command and feedback signals currently available on the most commonly used Flo-Tech valves are also available on an F-Series. To simplify the wiring process in a retrofit application, Woodward has designed several cables to adapt the wiring of the popular versions of the Flo-Tech control to the F-Series control. Each adaptor cable is 14 inches (35.5 cm) in length, uses the correct connectors for the intended application, and installs easily by mating to the engine harness originally designed for a Flo-Tech and plugging directly into the F-Series. An example of one of these adaptor cables is pictured in Figure 2- 1.
Selection of the proper cable can be accomplished using Table 2-1. More detailed wiring information regarding the F-Series can be found in Chapter 3 of Woodward manual 26355, F-Series Actuator & Integrated Throttle Body.
For the purpose of the Flo-Tech and F-Series connector configurations in Table 2-1, use the illustrations in Figure 2-2 to match the Flo-Tech and F-Series controls that are being interchanged.
Flo-Tech Command | Flo-Tech Connector Style | F-Series Pin Count | Woodward Adaptor # | High-Side Resistor | Knockdown Resistor |
---|---|---|---|---|---|
PWM | Packard 6-pin | 14-pin | 5450-1146 | - | - |
PWM | Deutsch 6-pin | 14-pin | 5450-1186 | - | - |
PWM | Deutsch 6-pin | 23-pin | 5450-1187 | - | - |
0-5 Vdc | Packard 6-pin | 23-pin | 5450-1188 | - | - |
4-20 mA | Packard 6-pin | 23-pin | 5450-1189 | - | - |
PWM | Packard 6-pin | 23-pin | 5450-1190 | - | - |
PWM | Packard 6-pin | 14-pin | 5450-1290 | X | - |
PWM | Deutsch 6-pin | 14-pin | 5450-1291 | X | - |
0-200 mA | Packard 6-pin | 23-pin | 5450-1232 | - | X |
0-200 mA | Deutsch 6-pin | 23-pin | 5450-1351 | - | X |
Given small changes in throttle and throttle plate geometry, the F-Series ITB flow curve has small differences when compared to the Flo-Tech flow curve. To correct this, the Position Demand Curve can be configured to make the F-Series ITB flow curve similar to the Flo-Tech throttle. This is needed if flow at a given position is critical in your Flo-Tech application. For most closed loop controls, this configuration to match the flow curves is not needed.
Setting the "Position Demand In %" and "Position Demand Out %" values to those shown in Table 3-1 will make the F-Series ITB flow curve match the Flo-Tech throttle.
48 mm | 60 mm | 68 mm | ||||
---|---|---|---|---|---|---|
Brkpt | Position Demand In % | Position Demand Out % | Position Demand In % | Position Demand Out % | Position Demand In % | Position Demand Out % |
1 | 0.0 | 1.7 | 0.0 | 1.2 | 0.0 | 0.5 |
2 | 7.0 | 3 | 7.0 | 2 | 10 | 3.5 |
3 | 12.0 | 7.0 | 12.0 | 3.7 | 18.0 | 14.0 |
4 | 60.0 | 58.0 | 87.1 | 88.0 | 70.0 | 72.0 |
5 | 100.0 | 100.0 | 100.0 | 99.0 | 100.0 | 100.0 |
Woodward p/n | Picture | Delphi P/N | Description | Type | wire (mm2) |
---|---|---|---|---|---|
1635-985 | 12020786 | Delphi 12020786 - 6 poliges Delphi Packard Weather Pack | |||
1635-171 | 12089040 | Delphi 12089040-L - Weather Pack I verzinnter Stiftkontakt (lose) | Male | 0.50 - 0.80 | |
1635-173 | 12015323 | Delphi, Metri-Pack Cable Seal, is green and is for use with a cable diameter of 2.00 - 2.90 mm | |||
1635-181 | 12010300 | Delphi 12010300 Blind Plug |
Woodward p/n | Picture | Delphi P/N | Description | Type | wire thicknes (mm2) |
---|---|---|---|---|---|
1635-991 | 12020926 | Delphi 12020926 - 6 poliges Delphi Weather Pack Tower | |||
1635-183 | 12089188 | Delphi 12089188-L - Weather Pack verzinnter Buchsenkontakt (lose) | Female | 0.50 - 0.80 | |
1635-173 | 12015323 | Delphi, Metri-Pack Cable Seal, is green and is for use with a cable diameter of 2.00 - 2.90 mm | |||
1635-181 | 12010300 | Delphi 12010300 Blind Plug |
Woodward p/n | Picture | Delphi P/N | Description | Type | wire thicknes (mm2) |
---|---|---|---|---|---|
1634-177 | DT04-6P-EP04 | DEUTSCH DT, Housing for Male Terminals, Wire-to-Wire, 6 Position, 9.12mm [.359in] Centerline, Sealable, Gray, Wire & Cable | Male | ||
1634-003 | 0460-202-16141 | DEUTSCH Common Contact, Automotive Terminals, Pin, Pin Diameter 1.59 mm [.063 in], Terminal Transmits 0 – 24 A (Low Power), 20 – 16AWG Wire Size/td> | Male | 0.50 - 1.50 | |
1634-963 | W6P | DEUTSCH DT, Automotive Connector Locks & Position Assurance, Secondary Lock, Green, Wire-to-Wire, PBT, 6 Position, Wire & Cable, Power & Signal | |||
1635-117 | 114017 | DEUTSCH HD30, Automotive Seals & Cavity Plugs, Cavity Plug, PBT, Good, White, Wire-to-Wire, Sealable, Wire & Cable, Power & Signal |
Picture | Delphi P/N | Description | Type | wire thicknes (mm2) | |
---|---|---|---|---|---|
1634-179 | DT06-6S-EP04 | DEUTSCH DT, Housing for Female Terminals, Wire-to-Wire, 6 Position, 9.12mm [.359in] Centerline, Sealable, Gray, Wire & Cable | Female | ||
1634-005 | 0462-201-16141 | DEUTSCH Common Contact, Automotive Terminals, Socket, Pin Diameter 1.59 mm [.063 in], Terminal Transmits 0 – 24 A (Low Power), 20 – 16AWG Wire Size | Female | 0.50 - 1.50 | |
1634-965 | W6S | DEUTSCH DT, Automotive Connector Locks & Position Assurance, Secondary Lock, Orange, Wire-to-Wire, PBT, 6 Position, Wire & Cable, Power & Signal | |||
1635-117 | 114017 | DEUTSCH HD30, Automotive Seals & Cavity Plugs, Cavity Plug, PBT, Good, White, Wire-to-Wire, Sealable, Wire & Cable, Power & Signal |
Picture | Delphi P/N | Description | Type | wire thicknes (mm2) |
---|---|---|---|---|
12010975 | Delphi 12010975 - 6 poliges Delphi Packard Weather Pack | |||
12124587 | Delphi 12124587-L - Weather Pack I verzinnter Stiftkontakt (lose) | Male | 2.50 - 3.00 | |
12124582 | Delphi 12124582-L - Weather Pack I verzinnter Stiftkontakt (lose) | Male | 1.00 - 2.00 | |
12089040 | Delphi 12089040-L - Weather Pack I verzinnter Stiftkontakt (lose) | Male | 0.50 - 0.80 | |
12089307 | Delphi 12089307-L - Weather Pack I verzinnter Stiftkontakt (lose) | Male | 0.22 - 0.35 | |
15324980 | Delphi, Metri-Pack Cable Seal, is grey and is for use with a cable diameter of 3.49 to 2.81mm | |||
15324982 | Delphi, Metri-Pack Cable Seal, is green and is for use with a cable diameter of 2.85 to 2.03mm | |||
15324983 | Delphi, Metri-Pack Cable Seal, is dark red and is for use with a cable diameter of 1.70 to 1.29mm | |||
10730124 | Delphi 10730124 Blind Plug |
Picture | Delphi P/N | Description | Type | wire thicknes (mm2) |
---|---|---|---|---|
12015799 | Delphi 12015799 - 6 poliges Delphi Weather Pack Tower | |||
12124581 | Delphi 12124581-L - Weather Pack verzinnter Buchsenkontakt (lose) | Female | 2.50 - 3.00 | |
12124580 | Delphi 12124580-L - Weather Pack verzinnter Buchsenkontakt (lose) | Female | 1.00 - 2.00 | |
12089188 | Delphi 12089188-L - Weather Pack verzinnter Buchsenkontakt (lose) | Female | 0.50 - 0.80 | |
12020801 | Delphi 12020801-L - Weather Pack verzinnter Buchsenkontakt (lose) | Female | 0.22 - 0.35 | |
15324980 | Delphi, Metri-Pack Cable Seal, is grey and is for use with a cable diameter of 3.49 to 2.81mm | |||
15324982 | Delphi, Metri-Pack Cable Seal, is green and is for use with a cable diameter of 2.85 to 2.03mm | |||
15324983 | Delphi, Metri-Pack Cable Seal, is dark red and is for use with a cable diameter of 1.70 to 1.29mm | |||
10730124 | Delphi 10730124 Blind Plug |
Picture | Delphi P/N | Description | Type | wire thicknes (mm2) |
---|---|---|---|---|
DT04-6P-CE09 | DEUTSCH DT, Housing for Male Terminals, Wire-to-Wire, 6 Position, 9.12mm [.359in] Centerline, Sealable, Black, Wire & Cable | |||
1060-16-0988 | DEUTSCH Common Contact, Automotive Terminals, Pin, Pin Diameter 1.59 mm [.063 in], Terminal Transmits 0-24 A (Low Power), 18-14AWG Wire Size, Gold | Male | 0.75 - 2.00 | |
W6P | DEUTSCH DT, Automotive Connector Locks & Position Assurance, Secondary Lock, Green, Wire-to-Wire, PBT, 6 Position, Wire & Cable, Power & Signal | |||
114017 | DEUTSCH HD30, Automotive Seals & Cavity Plugs, Cavity Plug, PBT, Good, White, Wire-to-Wire, Sealable, Wire & Cable, Power & Signal |
Picture | Delphi P/N | Description | Type | wire thicknes (mm2) |
---|---|---|---|---|
DT06-6S-CE13 | DEUTSCH DT, Housing for Female Terminals, Wire-to-Wire, 6 Position, 9.12mm [.359in] Centerline, Sealable, Black, Wire & Cable | |||
1062-16-0122 | DEUTSCH Common Contact, Automotive Terminals, Socket, Pin Diameter 1.59 mm [.063 in], Terminal Transmits 0-24 A (Low Power), 18-14AWG Wire Size | Female | 0.75 - 2.00 | |
W6S | DEUTSCH DT, Automotive Connector Locks & Position Assurance, Secondary Lock, Orange, Wire-to-Wire, PBT, 6 Position, Wire & Cable, Power & Signal | |||
114017 | DEUTSCH HD30, Automotive Seals & Cavity Plugs, Cavity Plug, PBT, Good, White, Wire-to-Wire, Sealable, Wire & Cable, Power & Signal |
F-Series Relace P/N | FLO-Tech P/N | Description | Throttle | Model F-series | Connector | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-132 | FLOTECH, 33MM/STD GAIN, PWM (STD), STD FLANGE | 33 mm | - | - | STD | PWM |
- | 8235-163 | FLOTECH, 33MM/STD GAIN, 4-20 MA, STD FLANGE | 33 mm | - | - | STD | 4-20 MA |
- | 8235-243 | FLOTECH, 33MM, STD GAIN, PWM, STD FLANGE, PACKARD, NORMALLY OPEN (CUMMINS) | 33 mm | - | PACKARD | STD | PWM |
FLO-TECH below are obsolute | |||||||
- | 8235-208 | FLOTECH, 33MM, STD GAIN, PWM, STD FLANGE, PACKARD | 33 mm | - | PACKARD | STD | PWM |
F-Series Relace P/N | FLO-Tech P/N | Description | Throttle | Model F-series | Connector | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-142 | FLOTECH, 48MM/STD GAIN, PWM (STD), STD FLANGE | 48 mm | - | - | STD | PWM |
- | 8235-158 | FLOTECH, 48MM/STD GAIN, 4-20 MA, STD FLANGE | 48 mm | - | - | STD | 4-20 MA |
- | 8235-167 | FLOTECH, 48MM/STD GAIN, 0-200 MA, STD FLANGE, BALL BEARING | 48 mm | - | - | STD | 0-200 MA |
- | 8235-174 | FLOTECH, 48MM/STD GAIN, PWM (STD), STD FLANGE, DEUTSCH | 48 mm | - | DEUTSCH | STD | PWM |
- | 8235-240 | FLOTECH, 48MM, STD GAIN, 4-20 MA, STD FLANGE, PACKARD,DOUBLESEAL | 48 mm | - | PACKARD | STD | 4-20 mA |
- | 8235-245 | FLOTECH, 48MM, ST GAIN, PWM, ORING GROOVE FLANGE, PACKARD (CATALOG REPLACEMENT FOR 8235-231) | 48 mm | - | PACKARD | STD | PWM |
- | 8235-246 | FLOTECH, 48MM, ST GAIN, PWM, ORING GROOVE, PACKARD, HALL EFFECT | 48 mm | - | PACKARD | STD | PWM |
FLO-TECH below are obsolute | |||||||
- | 8235-192 | FLOTECH, 48 MM/ST GAIN PWM, ORING GROOVE FLANGE | 48 mm | - | - | STD | PWM |
- | 8235-210 | FLOTECH, 48MM, STD GAIN, PWM, STD FLANGE, PACKARD | 48 mm | - | PACKARD | STD | PWM |
- | 8235-221 | FLOTECH, 48MM, STD GAIN, 4-20 MA, STD FLANGE, PACKARD | 48 mm | - | PACKARD | STD | 4-20 MA |
- | 8235-228 | FLOTECH, 48MM, STD GAIN, 0-200 MA, STD FLANGE, PACKARD | 48 mm | - | PACKARD | STD | 0-200 mA |
- | 8235-230 | FLOTECH, 48MM, STD GAIN, PWM, STD FLANGE, (DEUTSCH) | 48 mm | - | DEUTSCH | STD | PWM |
- | 8235-231 | FLOTECH, 48MM, ST GAIN, PWM, ORING GROOVE FLANGE, PACKARD | 48 mm | - | PACKARD | STD | PWM |
F-Series Relace P/N | FLO-Tech P/N | Description | Throttle | Model F-series | Connector | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-143 | FLOTECH, 60MM STD., STD. FLANGE, 4-20 MA, BALL BEARING | 60 mm | - | - | STD | 4-20 mA |
- | 8235-157 | FLOTECH, 60MM/STD GAIN, 0-5VDC, STD FLANGE | 60 mm | - | - | STD | 0-5 Vdc |
- | 8235-160 | FLOTECH, 60MM/STD GAIN,PWM,STD FLANGE | 60 mm | - | - | STD | PWM |
- | 8235-161 | FLOTECH, 60MM/STD GAIN,PWM,STD FLANGE, ANODIZED BORE | 60 mm | - | - | STD | PWM |
- | 8235-164 | FLOTECH, 60MM/STD GAIN, PWM, NO FLANGE, BALL BEARING | 60 mm | - | - | STD | PWM |
- | 8235-166 | FLOTECH, 60MM/STD GAIN, 0-200MA, BALL BEARING, STD FLG | 60 mm | - | - | STD | 0-200 mA |
- | 8235-206 | FLOTECH, 60MM, STD GAIN, PWM, THICK FLANGE, PACKARD | 60 mm | - | PACKARD | STD | PWM |
- | 8235-207 | FLOTECH, 60MM, LOW GAIN, 0-5 VDC, TAPPED FLANGE, PACKARD | 60 mm | - | PACKARD | STD | 0-5 Vdc |
- | 8235-226 | FLOTECH, 60MM, STD GAIN, PWM (DDC), SLOTTED FLANGE, PACKARD | 60 mm | - | PACKARD | STD | PWM |
- | 8235-232 | FLOTECH, 60MM, STD GAIN, PWM (DDC), SLOTTED FLG, PACKARD | 60 mm | - | PACKARD | STD | PWM |
- | 8235-233 | FLOTECH, 60MM, MED GAIN, 0-5VDC, NO FLANGE, PACKARD | 60 mm | - | PACKARD | STD | 0-5 Vdc |
- | 8235-244 | FLOTECH, 60MM/STD GAIN, 0-200MA, PACKARD, STD FLG | 60 mm | - | PACKARD | STD | 0-200 mA |
- | 8235-306 | FLOTECH, 60MM/STD GAIN PWM, M10 BOLTS | 60 mm | - | PACKARD | M10 | PWM |
- | 8235-403 | FLOTECH, 60MM/STD GAIN, PWM, STD FLANGE | 60 mm | - | - | STD | PWM |
FLO-TECH below are obsolute | |||||||
- | 8235-131 | FLOTECH, 60MM MODLIN, FLANGED | 60 mm | - | - | - | - |
- | 8235-135 | FLOTECH, 60MM/STD GAIN, PWM (DDC), STD FLANGE | 60 mm | - | - | STD | PWM |
- | 8235-144 | FLOTECH, 60MM/LOW GAIN, STD FLANGE, W/ POS. SENSOR | 60 mm | - | - | STD | - |
- | 8235-155 | FLOTECH, 60MM/MED GAIN, 0-5VDC, NO FLANGE (BUSHINGS) | 60 mm | - | - | STD | 0-5 Vdc |
- | 8235-156 | FLOTECH, 60MM/MED GAIN, 0-5VDC, THK FLANGE (BUSHINGS) | 60 mm | - | - | STD | 0-5 Vdc |
- | 8235-165 | FLOTECH, 60MM/STD GAIN, PWM (DDC), SPECIAL SLOTTED FLANGE | 60 mm | - | - | STD | PWM |
- | 8235-175 | FLOTECH, 60MM STD., STD. FLANGE, 4-20 MA, BALL BEARING, SPRING TO OPEN | 60 mm | - | - | STD | 4-20 mA |
- | 8235-179 | FLOTECH, 60MM/LOW GAIN, 0-5VDC, TAPPED FLG, BUSHINGS, METAL FORK | 60 mm | - | - | STD | 0-5 Vdc |
- | 8235-180 | FLOTECH, 60MM/MED GAIN, 0-5VDC, NO FLANGE (BUSHINGS), METAL FORK | 60 mm | - | - | - | 0-5 Vdc |
- | 8235-182 | FLOTECH, 60MM/LOW GAIN, DIGITAL, BUSHING, METAL FORK | 60 mm | - | - | - | - |
- | 8235-196 | FLOTECH, 60 MM/STD GAIN, PWM (DDC), SPECIAL SLOTTED FLG | 60 mm | - | - | STD | PWM |
- | 8235-197 | FLOTECH 60 MM/MED GAIN, 0-5VDC, NO FLANGE | 60 mm | - | - | - | 0-5 Vdc |
- | 8235-211 | FLOTECH, 60MM, STD GAIN, 4-20 MA, STD FLANGE, PACKARD | 60 mm | - | PACKARD | STD | 4-20 mA |
- | 8235-220 | FLOTECH, 60MM, STD GAIN, 0-5VDC, STD FLANGE, PACKARD | 60 mm | - | PACKARD | STD | 0-5 Vdc |
- | 8235-222 | FLOTECH, 60MM, STD GAIN, PWM, STD FLANGE, DEUTSCH | 60 mm | - | DEUTSCH | STD | PWM |
- | 8235-223 | FLOTECH. 60MM, STD GAIN, PWM, STD FLANGE, ANODIZED BORE, PACKARD | 60 mm | - | PACKARD | STD | PWM |
- | 8235-225 | FLOTECH, 60MM, STD GAIN, PWM, NO FLANGE, PACKARD | 60 mm | - | PACKARD | STD | PWM |
- | 8235-227 | FLOTECH, 60MM, STD GAIN, 0-200MA, STD FLG, DEUTSCH | 60 mm | - | DEUTSCH | STD | 0-200 mA |
- | 8235-236 | FLOTECH, 60MM, STD GAIN, PWM, M10 MTG BOLTS, PACKARD | 60 mm | - | PACKARD | M10 | PWM |
- | 8235-237 | FLOTECH, 60MM, STD GAIN, PWM, STD FLANGE, PACKARD | 60 mm | - | PACKARD | STD | PWM |
F-Series Relace P/N | FLO-Tech P/N | Description | Throttle | Model F-series | Connector | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-145 | FLOTECH, 68MM/STD GAIN, 0-200MA, STD FLANGE, (DEUTSCH) | 68 mm | - | DEUTSCH | STD | 0-200 mA |
- | 8235-148 | FLOTECH, 68MM/STD GAIN, PWM(STD), STD FLANGE, (DEUTSCH) | 68 mm | - | DEUTSCH | STD | PWM |
- | 8235-152 | FLOTECH, 68MM/STD GAIN, 0-200MA, STD FLANGE | 68 mm | - | - | STD | 0-200 mA |
- | 8235-153 | FLOTECH, 68MM/STD GAIN, 0-200MA, STD FLANGE (CIRC CONN) | 68 mm | - | - | STD | 0-200 mA |
- | 8235-154 | FLOTECH, 68MM/STD GAIN, PWM(STD), STD FLANGE | 68 mm | - | - | STD | PWM |
- | 8235-168 | FLOTECH, 68MM/STD GAIN, PWM (DDC), SPECIAL SLOTTED FLANGE | 68 mm | - | - | STD | PWM |
- | 8235-229 | FLOTECH, 68MM, STD GAIN, PWM (DDC), SLOTTED FLANGE, PACKARD | 68 mm | - | PACKARD | STD | PWM |
- | 8235-259 | FLOTECH, 68MM/STD GAIN, 4-20MA, STD FLANGE | 68 mm | - | - | STD | 4-20 mA |
FLO-TECH below are obsolute | |||||||
- | 8235-141 | FLOTECH, 68MM/STD GAIN, PWM (DDC), STD FLANGE | 68 mm | - | - | STD | PWM |
- | 8235-151 | FLOTECH, 68MM/STD GAIN, 0-5VDC(STD), STD FLANGE | 68 mm | - | - | STD | 0-5 Vdc |
- | 8235-205 | FLOTECH, 68MM, STD GAIN PWM, M10 MTG BOLTS, PACKARD | 68 mm | - | PACKARD | M10 | - |
- | 8235-212 | FLOTECH, 68MM, STD GAIN, 0-200MA, STD FLANGE, (DEUTSCH) | 68 mm | - | DEUTSCH | STD | 0-200 mA |
- | 8235-215 | FLOTECH, 68MM, STD GAIN, PWM, STD FLANGE, (DEUTSCH) | 68 mm | - | DEUTSCH | STD | PWM |
- | 8235-216 | FLOTECH, 68MM, STD GAIN, 0-5VDC, STD FLANGE, PACKARD | 68 mm | - | PACKARD | STD | 0-5 Vdc |
- | 8235-217 | FLOTECH, 68MM, STD GAIN, 0-200MA, STD FLANGE, PACKARD | 68 mm | - | PACKARD | STD | 0-200 mA |
- | 8235-218 | FLOTECH, 68MM, STD GAIN, 0-200MA, STD FLANGE, BENDIX | 68 mm | - | - | STD | 0-200 mA |
- | 8235-219 | FLOTECH, 68MM, STD GAIN, PWM, STD FLANGE, PACKARD | 68 mm | - | PACKARD | STD | PWM |
- | 8235-235 | FLOTECH, 68MM, STD GAIN, 4-20MA, STD FLANGE, PACKARD | 68 mm | - | PACKARD | STD | 4-20 mA |
F-Series Relace P/N | FLO-Tech P/N | Description | Throttle | Model F-series | Connector | Throttle Flange | position demand |
---|---|---|---|---|---|---|---|
- | 8235-140 | FLOTECH, 75MM/STD GAIN, PWM(STD), STD FLANGE, BALL BEARING | 75 mm | - | - | STD | PWM |
- | 8235-146 | FLOTECH, 75MM/STD GAIN, 0-200MA, FLANGED, (DEUTSCH) | 75 mm | - | DEUTSCH | STD | 0-200 mA |
- | 8235-147 | FLOTECH, 75MM/STD GAIN, PWM (STD), FLANGED, (DEUTSCH) | 75 mm | - | DEUTSCH | STD | PWM |
- | 8235-199 | FLOTECH, 75MM/STD GAIN, 0-200MA, FLANGED, (PACKARD) | 75 mm | - | PACKARD | STD | 0-200 mA |
FLO-TECH below are obsolute | |||||||
- | 8235-169 | FLOTECH, 75MM/STD GAIN, 0-200MA, NO FLANGE, (DEUTSCH) | 75 mm | - | DEUTSCH | STD | 0-200 mA |
- | 8235-209 | FLOTECH, 75MM, STD GAIN, PWM, STD FLANGE, PACKARD | 75 mm | - | PACKARD | STD | PWM |
- | 8235-213 | FLOTECH, 75MM, STD GAIN, 0-200MA, MODLIN FLANGE, (DEUTSCH) | 75 mm | - | DEUTSCH | STD | 0-200 mA |
- | 8235-214 | FLOTECH, 75MM, STD GAIN, PWM, MODLIN FLANGE, (DEUTSCH) | 75 mm | - | DEUTSCH | STD | PWM |
- | 8235-234 | FLOTECH, 75MM, STD GAIN, 0-200MA, FLANGED, PACKARD | 75 mm | - | PACKARD | STD | 0-200 mA |
- | 8235-242 | FLOTECH, 75MM/STD GAIN, 4-20MA, FLANGED, (PACKARD) | 75 mm | - | PACKARD | STD | 4-20 mA |
The ProAct series has been produced for many years and has his thirth generation from 2020
The ProAct usually gets mounted on reciprocating engines from 500hp up. It is used for the control of several components on Diesel or Gas/Gasoline engines:
There are three product lines, the first generation of ProActs is still available and has from 2019 a new digital speed control. The third generation from 2020 has RoHs and will replace the second generation ProActs. The main difference is, that generation 1 has a power PWM input, whereas generation 2 and 3 only has a signal input and produces its torque by pulling current out of a separate power supply. At least the larger generation 1 models need a dedicated driver to produce the power PWM, while generation 2 actuators do not. This leads to a better price-value relationship. There is also a ProAct with an integrated speed controller (ISC), comparable to the L-series and F-Series. This item considerably reduces expenses for wiring.
The ProActs are deliverable in four sizes (not for all types), corresponding to different work capabilities. These different sizes are model I, model II, model III and model IV and every model has double the torque and work capability than the next smaller model. From model I to IV the ProAct dimensions differ only by length! Generation 1 models also differ in shaft end diameters. The ISC models have less torque than the corresponding models of Generation 1, Analog or Digital Plus. ProAct Analog is only available as models I and II.
ProAct Digital Plus has marine certifications. The ProAct GEN III has also marine certifications, but also ATEX and RoHs.
ProAct | ||||||
---|---|---|---|---|---|---|
Generation 1 | Generation 2 | Generation 3 | ||||
ProAct 75 | Analog | Digital Plus | ISC (Intergrated Speed Control) | P-Series | GEN 3 | |
Size | ||||||
Model I | ProAct I Gen I | ProAct I Analog | ProAct I Digital Plus | ProAct I ISC | - | - |
Model II | ProAct II Gen I | ProAct II Analog | ProAct II Digital Plus | ProAct II ISC | ProAct II P-Series | ProAct II GEN 3 |
Model III | ProAct III Gen I | - | ProAct III Digital Plus | ProAct III ISC | ProAct III P-Series | ProAct III GEN 3 |
Model IV | ProAct IV Gen I | - | ProAct IV Digital Plus | ProAct IV ISC | ProAct IV P-Series | ProAct IV GEN 3 |
Model V | ProAct V Gen I | - | - | - | - | - |
The ProAct series are deliverable in four sizes (not for all types), corresponding to different work capabilities. These different sizes are model I, model II, model III and model IV and every model has double the torque and work capability than the next smaller model. ProAct Analog is only available as models I and II. The P-Series and GEN 3 doesn't have a model I.
ProAct | ||||||
---|---|---|---|---|---|---|
Generation 1 | Generation 2 | Generation 3 | ||||
ProAct 75 | Analog | Digital Plus | ISC (Intergrated Speed Control) | P-Series | GEN 3 | |
Torque output: | Continuous - Transient | Continuous - Transient | Continuous - Transient | Continuous - Transient | Continuous - Transient | Continuous - Transient |
Model I | 1.4 Nm - 3.55 J | 1.7 J - 3.4 J | 1.7 J - 3.4 J | 1.3 Nm - 2.6 Nm | - | - |
Model II | 2.7 Nm - 7.11 J | 3.4 J - 7 J | 3.4 J - 7 J | 2.6 Nm - 5.2 Nm | 2.6 Nm - 5.2 Nm | 2.6 Nm - 5.2 Nm |
Model III | 7 Nm - 14 Nm | - | 7 J - 14 J | 5.2 Nm - 10.4 Nm | 5.2 Nm - 10.4 Nm | 5.2 Nm - 10.4 Nm |
Model IV | 14 Nm - 27 Nm | - | 14 J - 27 J | 10.4 Nm - 20.8 Nm | 10.4 Nm - 20.8 Nm | 10.4 Nm - 20.8 Nm |
Model V | Nm - Nm | - | - | - | - | - |
The ProAct series are Governors and/or Actuators. The Generation I has a driver box or Speed Control who delivers a power PWM to the 75 Actuator. Generation II and III produce their torque by pulling current out of a separate power supply.
The ProAct ISC (PISC) Intergrated Speed Control has a speed controller and onboard. But can also be configured as actuator and followed his signal input.
ProAct | ||||||
---|---|---|---|---|---|---|
Generation 1 | Generation 2 | Generation 3 | ||||
ProAct 75 | Analog | Digital Plus | ISC (Intergrated Speed Control) | P-Series | GEN 3 | |
Model I | Driver or Speed Control | PWM or 4-20 mA, 0-200 mA | PWM, 0-5 V, 4-20 mA, 0-200 mA, CAN | MPU, 0-5 V, ±3 4-20 mA, CAN | - | - |
Model II | Driver or Speed Control | PWM or 4-20 mA, 0-200 mA | PWM, 0-5 V, 4-20 mA, 0-200 mA, CAN | MPU, 0-5 V, ±3 4-20 mA, CAN | PWM, 0-5 V, 4-20 mA, CAN | PWM, 0-5 V, 4-20 mA, CAN |
Model III | Driver | - | PWM, 0-5 V, 4-20 mA, 0-200 mA, CAN | MPU, 0-5 V, ±3 4-20 mA, CAN | PWM, 0-5 V, 4-20 mA, CAN | PWM, 0-5 V, 4-20 mA, CAN |
Model IV | Driver | - | PWM, 0-5 V, 4-20 mA, 0-200 mA, CAN | MPU, 0-5 V, ±3 4-20 mA, CAN | PWM, 0-5 V, 4-20 mA, CAN | PWM, 0-5 V, 4-20 mA, CAN |
Model V | Driver () | - | - | - | - | - |
The ProAct Generation I has different shaft dimensions for models I, II,III and IV. Generation II and III have the same shafts.
ProAct | ||||||
---|---|---|---|---|---|---|
Generation 1 | Generation 2 | Generation 3 | ||||
shaft end | ProAct 75 | Analog | Digital Plus | ISC (Intergrated Speed Control) | P-Series | GEN 3 |
Model I | 0.500"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated | - |
Model II | 0.500"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated |
Model III | 0.625"-36 serrated | - | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated |
Model IV | 0.750"-48 serrated | - | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated | 0.625"-36 serrated |
Model V | xx"-xx serrated | - | - | - | - | - |
The ProAct GEN I is designed for direct coupling to the butterfly valve shaft on small gas engines. It is designed for control of most diesel engines and larger carbureted gas engines. The ProAct actuators provide 75° of actuator output rotation to move an attached lever and linkage which sets engine fuel or engine rack settings.
The actuators may be driven by a power PWM signal of ±12A. For ProAct I and ProAct II (i.e. models I and II) speed controllers with PWM output are deliverable from Woodward, which can directly be connected to the actuators. For the larger ProActs III and IV (i.e. models III and IV), a separate driver is essential, because no speed controller has a corresponding output, supplying 21A PWM current.
ProAct 75 | ProAct 75 ITB |
Speed Control I- II | Driver Box I - II | Driver Box III - IV |
Two versions of Speed Control has been made. One for general sales and one for MHI (Mitsubishi Heavy Industries), which has an extra limiter in the software.
In 2019 the Speed Control has been renewed as componends became obsolete. This controller has now RoHs. The new Speed Control has to be programmed through CAN with Toolkit where the old used the Handheld. The settings could be transfered from the old Speed Control and only the 'Enertia' need some attention.
Speed Control ProAct GEN I Model I-II |
Handheld Old Speed Control | Toolkit New Speed Control |

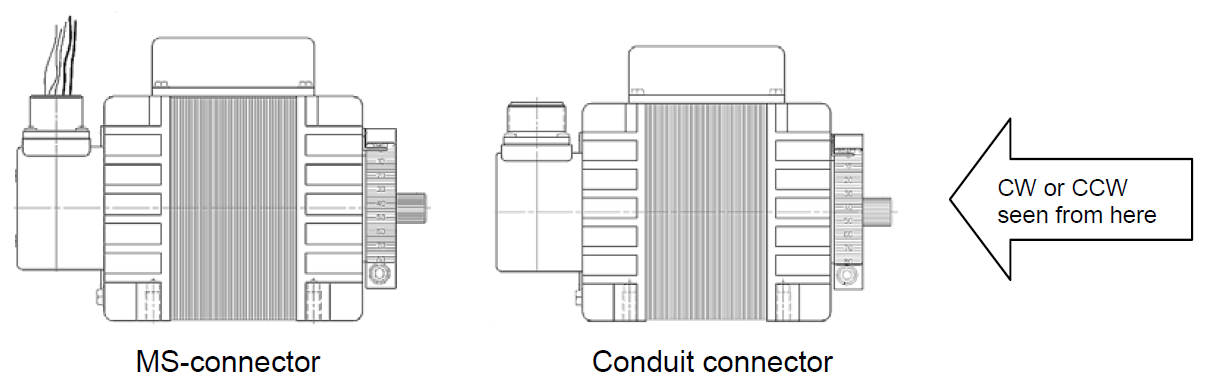

Rotation ProAct 75 Actuator |

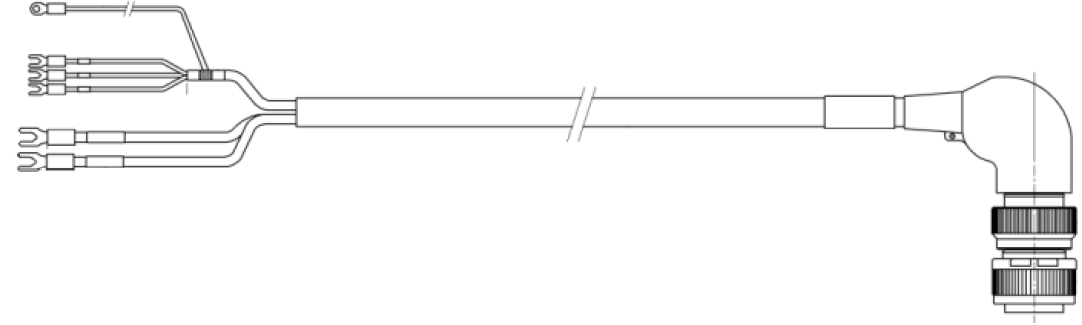

Every Generation 1 actuator type is available with two different connection types: with a MS connector or with two wires led through (conduit connector). The conduit connector version is applicable for hazardous environments (UL).
The actuators are supplied with clockwise (CW) or counter-clockwise (CCW) rotation to rise fuel. Directions are determined by looking at the actuator shaft.
Minimum Fuel Return Spring:The actuator is equipped with a light spring return toward min fuel to prevent drift in case of position signal interruption. Normal operating conditions do not require spring return, as the actuator is powered in both the increase and decrease directions.
The sensor used for position feedback in the ProAct Gen 1 actuators for years has been discontinued and is no longer available. A new position sensor has been designed into the ProAct Gen 1 actuators and, beginning in April, 2014, all ProAct Gen 1 actuators will be built using this new position sensor.
There are electrical differences between the previous position sensor and the new one. These differences affect the compatibility of the new ProAct Gen 1 actuators with existing ProAct Gen 1 Models I and II speed controls. The old ProAct speed control module does not supply enough electrical drive current to operate the new position sensor, which requires 13 mA max at 5 Vdc. If an older ProAct Gen 1 actuator needs to be replaced, the ProAct Gen 1 speed control must be replaced as well in order for it to be compatible with the new replacement actuator. However, the new ProAct Gen 1 speed control will work with both the older ProAct Gen 1 actuator and the new the ProAct Gen 1 actuator.
The Speed Control power supply for the new position sensor can also be upgraded by a official Woodward dealer. Who will after implementing the hardware upgrade, change the part number of the speed control to indentify the upgrade in the future.
The ProAct 75 Actuators can also be repaired by a official Woodward dealer. Here it is important to know in which application the ProAct 75 Actuator is used. The new position sensor can only rotated in one direction, so if the position sensor is replaced it is important to know the rotation direction.
The old position sensor could work in both direction and changing the wires was enought to change CW to CCW.
The selection tables below identify existing part numbers and the direct replacement part numbers that need to be used.
The Speed Control table left from right, the old part number, old controller with upgraded sensor power supply part number and new speed control with RoHs
old Speed control | Description | Upgraded (new) Speed control | Rohs Speed control |
---|---|---|---|
8400-010 | ProAct Model II Speed (Non UL Pkg) | 8400-059 | - |
8400-015* | ProAct mA Control (0-200 mA Act Out) | See Note Below * | - |
8400-055 | ProAct Model II Fuel Limit | 8400-061 | 8400-066 |
9905-462 | ProAct Model I Speed | 9907-1289 | 8400-065 |
9905-463 | ProAct Model II Speed | 9907-1290(460-2080) | 8400-067 |
9905-792 | ProAct Model II Plus 4-20 mA Fuel Limiter | 9907-1291 | 8400-066 |
* ProAct Speed Control 8400-015 does not need to change. It connects to an intermediate ProAct Driver, which in turn is then connected to the ProAct Actuator. The actuator needs to be matched to a ProAct Driver and not to the 8400-015 ProAct Speed Control. Select a new actuator for use in Driver Applications. Manual 04176
The Driver Box for ProAct 75 model I+II Actuators need also a hardware upgrade to supply enough power for the new position sensor in the Actuator. If the Actuator is replaced for a new model or the actuator is repaired and has a new position sensor, the Driver box also have to be send in for the upgrade or should be replaced by a new Driver box. Check the tables below to see which part number the driver box and actuator have to see if they still work togheter. If there is any doubt, send an e-mail with the Driver box part number and the actuator part number.
Old Driver p/n | Decription - old part number | New Driver P/N |
---|---|---|
8400-011 | Control 0-200 mA ProAct I+II Driver IP56, conduits | 8400-706 |
8400-016 | Control 1 kHz PWM ProAct I+II Driver IP56, conduits | 8400-703 |
8400-020 | Control 4-20 mA ProAct I+II Driver IP56, conduits | 8400-704 |
8400-025 | Control 4-20 mA ProAct I+II Driver Non-IP56, grommets | 8400-704 * |
8400-702 | Control 0-200 mA ProAct I+II Driver Non-IP56, grommets | 8400-706 * |
* These units are IP56 versions and can be used to replace non-IP56 versions
Below table represents actuators that WILL EVENTUALLY be RoHS compliant. However, at this time they may not be available for sale as a RoHS compliant unit. Please contact Woodward for confirmation of status prior to ordering if RoHs is required.
Model | Decription | rotation | connector | Actuator P/N | RoHs |
---|---|---|---|---|---|
I | ProAct I, CW, MS Connector | CW | X | 8405-065 | - |
I | ProAct I, CW, Conduit Connector | CW | - | 8405-067 | - |
I | ProAct I, CCW, MS Connector | CCW | X | 8405-089 | - |
II | ProAct II, CW, MS Connector | CW | X | 8405-069 | - |
II | ProAct II, CW, Conduit Connector | CW | - | 8405-071 | - |
II | ProAct II, CCW, MS Connector | CCW | X | 8405-073 | - |
II | ProAct II, CW, Smooth Shaft, MS Connector | CW | X | 8405-075 | - |
II | ProAct II. CW, D-Shaft, MS Connector | CW | X | 8405-077 | - |
II | ProAct II, CCW, MS Connector for Flo-Tech Throttle Only | CCW | X | 8405-081 | - |
II | ProAct II, CCW, MS Connector No Return Spring | CCW | X | 8405-091 | - |
II | ProAct II, CW, Conduit Connector Threaded Shaft Hole | CW | - | 8405-079 | 8405-094 |
* Directions are determined by looking at the actuator shaft and the rotation to increase fuel.
Below table represents actuators that WILL EVENTUALLY be RoHS compliant. However, at this time they may not be available for sale as a RoHS compliant unit. Please contact Woodward for confirmation of status prior to ordering if RoHs is required.
Model | Decription | Rotation | Connector | Actuator P/N | RoHs |
---|---|---|---|---|---|
I | ProAct I, CW, MS Connector | CW | X | 8405-064 | - |
I | ProAct I, CW, Conduit Connector | CW | - | 8405-066 | - |
I | ProAct I, CCW, MS Connector | CCW | X | 8405-088 | - |
II | ProAct II, CW, MS Connector | CW | X | 8405-068 | - |
II | ProAct II, CW, Conduit Connector | CW | - | 8405-070 | - |
II | ProAct II, CCW, MS Connector | CCW | X | 8405-072 | - |
II | ProAct II, CW, Smooth Shaft, MS Connector | CW | X | 8405-074 | - |
II | ProAct II. CW, D-Shaft, MS Connector | CW | X | 8405-076 | - |
II | ProAct II, CCW, MS Connector for Flo-Tech Throttle Only | CCW | X | 8405-080 | - |
II | ProAct II, CCW, MS Connector No Return Spring | CCW | X | 8405-090 | - |
II | ProAct II, CW, Conduit Connector Threaded Shaft Hole | CW | - | 8405-078 | 8405-093 |
III | PROACT III, CW, MS CONNECT | CW | X | 8405-062 | - |
III | PROACT III R.H. LARGE THROTTLE, CCW, MS CONNECT | CCW | X | 8405-082 | - |
III | PROACT III, CW, CONDUIT CONNECT | CW | - | 8405-083 | - |
III | PROACT III, CCW, MS CONNECT | CCW | X | 8405-084 | - |
III | PROACT III L.H. LARGE THROTTLE, CCW, MS CONNECT | CCW | X | 8405-087 | - |
IV | PROACT IV, CW, MS CONNECT | CW | X | 8405-085 | - |
IV | PROACT IV, CCW, MS CONNECT | CCW | X | 8405-086 | - |
IV | PROACT IV, CCW, CONDUIT CONNECT | CCW | - | 8405-092 | - |
IV | PROACT IV, CW, CONDUIT CONNECT | CW | - | 8405-063 | - |
* Directions are determined by looking at the actuator shaft and the rotation to increase fuel.
Application | New Actuator P/N | Description | Old Actuator P/N | Position Sensor |
---|---|---|---|---|
Driver | 8405-062 | ACTUATOR - PROACT III, CW, MS CONNECT, POSN CTRL | 8405-009 | 1689-1290 |
Driver | 8405-063 | ACTUATOR - PROACT IV, CW, CONDUIT CONNECT, POSN CTRL | 8405-014 | 1689-1290 |
Driver | 8405-064 | ACTUATOR - PROACT I, CW, MS CONNECT, POSN CTRL | 8405-020 | 1689-1290 |
Speed Control | 8405-065 | ACTUATOR - PROACT I, CW, MS CONNECT, SPEED CTRL | 8405-020 | 1689-1291 |
Driver | 8405-066 | ACTUATOR - PROACT I, CW, CONDUIT CONNECT, POSN CTRL | 8405-021 | 1689-1290 |
Speed Control | 8405-067 | ACTUATOR - PROACT I, CW, CONDUIT CONNECT, SPEED CTRL | 8405-021 | 1689-1291 |
Driver | 8405-068 | ACTUATOR - PROACT II, CW, MS CONNECTOR, POSN CTRL | 8405-024 | 1689-1290 |
Speed Control | 8405-069 | ACTUATOR - PROACT II, CW, MS CONNECTOR, SPEED CTRL | 8405-024 | 1689-1291 |
Driver | 8405-070 | ACTUATOR - PROACT II, CW, CONDUIT CONNECT, POSN CTRL | 8405-025 | 1689-1290 |
Speed Control | 8405-071 | ACTUATOR - PROACT II, CW, CONDUIT CONNECT, SPEED CTRL | 8405-025 | 1689-1291 |
Driver | 8405-072 | ACTUATOR - PROACT II, CCW, MS CONNECT, POSN CTRL | 8405-026 | 1689-1290 |
Speed Control | 8405-073 | ACTUATOR - PROACT II, CCW, MS CONNECT, SPEED CTRL | 8405-026 | 1689-1291 |
Driver | 8405-074 | ACTUATOR - PROACT II, CW, SMOOTH SHAFT, MS CONNECT, POSN CTRL | 8405-039 | 1689-1290 |
Speed Control | 8405-075(460-2082) | ACTUATOR - PROACT II, CW, SMOOTH SHAFT, MS CONNECT, SPEED CTRL | 8405-039 | 1689-1291 |
Driver | 8405-076 | ACTUATOR - PROACT II. CW, D-SHAFT, MS CONNECT, POSN CTRL | 8405-040 | 1689-1290 |
Speed Control | 8405-077 | ACTUATOR - PROACT II. CW, D-SHAFT, MS CONNECT, SPEED CTRL | 8405-040 | 1689-1291 |
Driver | 8405-078 | ACTUATOR - PROACT II, CW, CONNECT, THREADED SHAFT HOLE, POSN CTRL | 8405-052 | 1689-1290 |
Speed Control | 8405-079 | ACTUATOR - PROACT II, CW, CONDUIT CONNECT, THREADED SHAFT HOLE, SPEED CTRL | 8405-052 | 1689-1291 |
Driver | 8405-080 | ACTUATOR - PROACT II, CCW, MS CONNECTOR, FOR FLO-TECH THROTTLE ONLY, POSN CTRL | 8405-050 | 1689-1291 |
Speed Control | 8405-081 | ACTUATOR - PROACT II, CCW, MS CONNECTOR, FOR FLO-TECH THROTTLE ONLY, SPEED CTRL | 8405-050 | 1689-1290 |
Driver | 8405-082 | ACTUATOR - R.H. LARGE THROTTLE PROACT III, POSN CTRL | 8405-041 | 1689-1291 |
Driver | 8405-083 | ACTUATOR - PROACT III, CW, CONDUIT CONNECT, POSN CTRL | 8405-010 | 1689-1290 |
Driver | 8405-084 | ACTUATOR - PROACT III, CCW, MS CONNECT, POSN CTRL | 8405-011 | 1689-1291 |
Driver | 8405-085 | ACTUATOR - PROACT IV, CW, MS CONNECT, POSN CTRL | 8405-013 | 1689-1290 |
Driver | 8405-086 | ACTUATOR - PROACT IV, CCW, MS CONNECT, POSN CTRL | 8405-015 | 1689-1291 |
Driver | 8405-087 | ACTUATOR - L.H. LARGE THROTTLE PROACT III, MS CONNECT, POSN CTRL | 8405-042 | 1689-1291 |
Driver | 8405-088 | ACTUATOR - PROACT I, CCW, MS CONNECT, POSN CTRL | 8405-022 | 1689-1291 |
Speed Control | 8405-089 | ACTUATOR - PROACT I, CCW, MS CONNECT, SPEED CTRL | 8405-022 | 1689-1290 |
Driver | 8405-090 | ACTUATOR - PROACT II, CCW, MS CONNECT, NO RETURN SPRING, POSN CTRL | 8405-150 | 1689-1291 |
Speed Control | 8405-091 | ACTUATOR - PROACT II, CCW, MS CONNECT, NO RETURN SPRING, SPEED CTRL | 8405-150 | 1689-1290 |
Driver | 8405-092 | ACTUATOR - PROACT IV, CCW, CONDUIT CONNECT, POSN CTRL | 8405-016 | 1689-1291 |
Application | New ITB (Actuator) P/N | Description | Old ITB (Actuator) P/N | Position Sensor |
---|---|---|---|---|
Driver | 8235-398 (8405-080) | Control-120 mm Bore, Throttle Body w/ ProAct II, w/ MS Connector | 8235-177 (8405-050) | 1689-1291 |
Speed Control | 8235-399 (8405-081) | Control-120 mm Bore, Throttle Body w/ ProAct II, w/ MS Connector | 8235-177 (8405-050) | 1689-1290 |
Driver | 8235-248 (8405-080) | Control-107 mm Bore, Throttle Body w/ ProAct II, w/ MS Connector | 8235-178 (8405-050) | 1689-1291 |
Speed Control | 8235-249 (8405-081) | Control-107 mm Bore, Throttle Body w/ ProAct II, w/ MS Connector | 8235-178 (8405-050) | 1689-1290 |
Driver | 8235-400 (8405-080) | Control-135 mm Bore, Throttle Body w/ ProAct II, w/ MS Connector | 8235-181 (8405-050) | 1689-1291 |
Speed Control | 8235-402 (8405-081) | Control-135 mm Bore, Throttle Body w/ ProAct II, w/ MS Connector | 8235-181 (8405-050 | 1689-1290 |
Driver | 8235-404 (8405-090) | Control-120 mm Bore, Throttle Body w/ ProAct II, w/ MS Connector, No Return Spring | 8235-185 (8405-150) | 1689-1291 |
Speed Control | 8235-406 (8405-091)(460-2083) | Control-120 mm Bore, Throttle Body w/ ProAct II, w/ MS Connector, No Return Spring | 8235-185 (8405-150) | 1689-1290 |
Driver | 8300-716 (8405-066) | Actuator-ProAct I (8405-021 w/ Connector Kit and Sumi-Tube) | 8300-244 (8405-021) | 1689-1290 |
Speed Control | 8300-717 ((8405-067) | Actuator-ProAct I (8405-021 w/ Connector Kit and Sumi-Tube) | 8300-244 (8405-021) | 1689-1291 |
Note: Old actuators and drivers are not interchangeable with the new actuators and drivers. Both the actuator and driver must be replaced at the same time in order to work together.
Application | New Driver/Actuator System P/N | New Driver p/m | New Actuator p/n | Description | Old Driver/Actuator System P/N | Old Driver p/m | Old Actuator p/n | Position Sensor |
---|---|---|---|---|---|---|---|---|
Driver | 8256-259 | 8400-704 | 8405-068 | Actuator-ProAct II (4-20 mA, CON DRV, M/S ACT, CW ACT) | 8256-238 | 8400-020 | 8405-024 | 1689-1290 |
Driver | 8256-260 | 8400-706 | 8405-068 | Actuator-ProAct II (20-160 mA, CON DRV, M/S ACT, CW ACT) | 8256-242 | 8400-011 | 8405-024 | 1689-1290 |
Note: The bill of materials was changed to include the new actuators and new drivers. The top level part number's revision was advanced to reflect changing to the new actuator.
Application | Top Level Part Numbers that Don't Change | Description | Driver_p/n | New Actuator p/n | Position Sensor |
---|---|---|---|---|---|
ProAct III ITB | 8235-172 | Control-135 mm Bore, Throttle Body w/ ProAct III w/ MS Connector | - | 8405-082 | |
ProAct III ITB | 8235-314 | Control-135 mm Throttle Body w/ ProAct III, w/ MS Connector Magnaplated Housing And Throttle Plate) | - | 8405-082 | |
System | 8256-204 | Actuator-ProAct IV (4-20 mA, Con Drv, Con Act, CW Act) | 9905-388 | 8405-063 | |
System | 8256-205 | Actuator-ProAct IV (4-20 mA, Con Drv, Con Act, CCW Act) | 9905-388 | 8405-092 | |
System | 8256-206 | Actuator-ProAct IV (4-20 mA, Con Drv, M/S Act, CW Act) | 9905-388 | 8405-085 | |
System | 8256-207 | Actuator-ProAct IV (4-20 mA, Con Drv, M/S Act, CCW Act) | 9905-388 | 8405-086 | |
System | 8256-208 | Actuator-ProAct IV (20-160 mA, Con Drv, Con Act, CW Act) | 9905-389 | 8405-063 | |
System | 8256-209 | Actuator-ProAct IV (20-160 mA, Con Drv, Con Act, CCW Act) | 9905-389 | 8405-092 | |
System | 8256-210 | Actuator-ProAct IV (20-160 mA, Con Drv, M/S Act, CW Act) | 9905-389 | 8405-085 | |
System | 8256-211 | Actuator-ProAct IV (20-160 mA, Con Drv, M/S Act, CCW Act) | 9905-389 | 8405-086 | |
System | 8256-212 | Actuator-ProAct IV (4-20 mA, M/S Drv, Con Act, CW Act) | 9905-390 | 8405-063 | |
System | 8256-213 | Actuator-ProAct IV (4-20 mA, M/S Drv, Con Act, CCW Act) | 9905-390 | 8405-092 | |
System | 8256-214 | Actuator-ProAct IV (4-20 mA, M/S Drv, M/S Act, CW Act) | 9905-390 | 8405-085 | |
System | 8256-215 | Actuator-ProAct IV (4-20 mA, M/S Drv, M/S Act, CCW Act) | 9905-390 | 8405-086 | |
System | 8256-216 | Actuator-ProAct IV (20-160 mA, M/S Drv, Con Act, CW Act) | 9905-391 | 8405-063 | |
System | 8256-217 | Actuator-ProAct IV (20-160 mA, M/S Drv, Con Act, CCW Act) | 9905-391 | 8405-092 | |
System | 8256-218 | Actuator-ProAct IV (20-160 mA, M/S Drv, M/S Act, CW Act) | 9905-391 | 8405-085 | |
System | 8256-219 | Actuator-ProAct IV (20-160 mA, M/S Drv, M/S Act, CCW Act) | 9905-391 | 8405-086 | |
System | 8256-220 | Actuator-ProAct III (4-20 mA, Con Drv, Con Act, CW Act) | 9905-384 | 8405-083 | |
System | 8256-222 | Actuator-ProAct III (4-20 mA, Con Drv, M/S Act, CW Act) | 9905-384 | 8405-062 | |
System | 8256-223 | Actuator-ProAct III (4-20 mA, Con Drv, M/S Act, CCW Act) | 9905-384 | 8405-084 | |
System | 8256-224 | Actuator-ProAct III (20-160 mA, Con Drv, Con Act, CW Act) | 9905-385 | 8405-083 | |
System | 8256-226 | Actuator-ProAct III (20-160 mA, Con Drv, M/S Act, CW Act) | 9905-385 | 8405-062 | |
System | 8256-227 | Actuator-ProAct III (20-160 mA, Con Drv, M/S Act, CCW Act) | 9905-385 | 8405-084 | |
System | 8256-228 | Actuator-ProAct III (4-20 mA, M/S Drv, Con Act, CW Act) | 9905-386 | 8405-083 | |
System | 8256-230 | Actuator-ProAct III (4-20 mA, M/S Drv, M/S Act, CW Act) | 9905-386 | 8405-062 | |
System | 8256-231 | Actuator-ProAct III (4-20 mA, M/S Drv, M/S Act, CCW Act) | 9905-386 | 8405-084 | |
System | 8256-232 | Actuator-ProAct III (20-160 mA, M/S Drv, Con Act, CW Act) | 9905-387 | 8405-083 | |
System | 8256-234 | Actuator-ProAct III (20-160 mA, M/S Drv, M/S Act, CW Act) | 9905-387 | 8405-062 | |
System | 8256-235 | Actuator-ProAct III (20-160 mA, M/S Drv, M/S Act, CCW Act) | 9905-387 | 8405-084 | |
ProAct IV + kit | 8256-253 | Actuator-ProAct IV (8405-014 w/ Connector Kit) | - | 8405-063 | |
System | 8256-255 | Actuator-ProAct III (0-200 mA, MS Drv, Con Act, CW Act) | 9905-392 | 8405-083 | |
System | 8256-256 | Actuator-ProAct IV (0-200 mA. MS Drv, Con Act, CW Act) | 9905-460 | 8405-063 | |
ProAct IV + kit | 8256-258 | Actuator-ProAct IV w/ Connector Kit (10 ft Long Wire Leads) | - | 8405-063 | |
Hyd Amp - System | 8300-210 | System-5.250" Hyd Amp/ProAct III (old p/n 8902-758) | 9905-387 | 8405-084 | |
Hyd Amp. | 8300-211 | System-5.250" Hyd Amp/ProAct III (old p/n 8902-780) | - | 8405-084 | |
System | 8300-217 | Actuator-ProAct IV System (8405-014 WITH CONNECTOR KIT) | 9905-391 | 8256-253 (8405-063) | |
System | 8300-223 | System-ProAct IV | 9905-391 | 8256-258 (8405-063) | |
System | 8440-1812 | Control-System + (90 degree connector) | 9907-1290 | 8405-073 | |
System | 8915-962 | System-Flo-Tech 135 III & PWM Driver | 8400-036 | 8235-172 (8405-082) | |
CLC (train) | 8920-151 | Kit-CLC Interface | - | 8405-062 |
Note: Contact us to identify a possible replacement.
We can repair the Actuators, Driver Box and Speed Controls or find a replacement for your installation.
Application | Top Level Item Number | Description-Inactive | Driver_p/n | Actuator p/n | |
---|---|---|---|---|---|
ProAct ITB | 8235-159 | Control-135 mm Bore, Throttle Body w/ ProAct II, w/ Conduit Connector | 8405-027 | ||
ProAct ITB | 8235-170 | Control-107 mm Bore, Throttle Body w/ ProAct II w/ Conduit Connector | 8405-027 | ||
ProAct ITB | 8235-171 | Control-120 mm Bore, Throttle Body w/ ProAct II w/ Conduit Connector | 8405-027 | ||
ProAct ITB | 8235-183 | Control-135 mm Bore, Throttle Body w/ ProAct III, w/ Conduit Connector | 8405-049 | ||
ProAct ITB | 8235-255 | Control-135 mm Bore, Throttle Body w/ ProAct II, CCW w/ MS Connector, No Return Spring | 8405-150 | ||
ProAct ITB | 8235-256 | Control-75 mm Bore, Throttle Body, w/ ProAct II, w/ MS Connector (ProAct ITB) | 8405-150 | ||
ProAct ITB | 8235-258 | Control-95 mm Bore, Throttle Body, w/ ProAct II, w/ MS Connector (ProAct ITB) | 8405-026 | B36174 | |
System | 8256-221 | Actuator-ProAct III (4-20 mA, Con Drv, Con Act, CCW Act) | 9905-384 | 8405-012 | |
System | 8256-225 | Actuator-ProAct III (20-160 mA, Con Drv, Con Act, CCW Act) | 9905-385 | 8405-012 | |
System | 8256-229 | Actuator-ProAct III (4-20 mA, M/S Drv, Con Act, CCW Act) | 9905-386 | 8405-012 | |
System | 8256-233 | Actuator-ProAct III (20-160 mA, M/S Drv, Con Act, CCW Act) | 9905-387 | 8405-012 | |
System | 8256-236 | Actuator-ProAct II (4-20 mA, Con Drv, Con Act, CW Act) | 8400-020 | 8405-070 | |
System | 8256-237 | Actuator-ProAct II (4-20 mA, Con Drv, Con Act, CCW Act) | 8400-020 | 8405-027 | |
System | 8256-239 | Actuator-ProAct II (4-20 mA, Con Drv, M/S Act, CCW Act) | 8400-020 | 8405-072 | |
8256-240 | Actuator-ProAct II (20-160 mA, Con Drv, Con Act, CW Act) | 8400-011 | 8405-070 | ||
System | 8256-241 | Actuator-ProAct II (20-160 mA, Con Drv, Con Act, CCW Act) | 8400-011 | 8405-027 | |
System | 8256-243 | Actuator-ProAct II (20-160 mA, Con Drv, M/S Act, CCW Act) | 8400-011 | 8405-072 | |
System | 8256-244 | Actuator-ProAct II (4-20 mA, S/M Drv, Con Act, CW Act) | 8400-025 | 8405-070 | |
System | 8256-245 | Actuator-ProAct II (4-20 mA, S/M Drv, Con Act, CCW Act) | 8400-025 | 8405-027 | |
8256-246 | Actuator-ProAct II (4-20 mA, S/M Drv, M/S Act, CW Act) | 8400-025 | 8405-068 | ||
System | 8256-247 | Actuator-ProAct II (4-20 mA, S/M Drv, M/S Act, CCW Act) | 8400-025 | 8405-072 | |
System | 8256-248 | Actuator-ProAct II (20-160 mA, S/M Drv, Con Act, CW Act) | 8400-702 | 8405-070 | |
System | 8256-249 | Actuator-ProAct II (20-160 mA, S/M Drv, Con Act, CCW Act) | 8400-702 | 8405-027 | |
System | 8256-250 | Actuator-ProAct II (20-160 mA, S/M Drv, M/S Act, CW Act) | 8400-702 | 8405-068 | |
System | 8256-251 | Actuator-ProAct II (20-160 mA, S/M Drv, M/S Act, CCW Act) | 8400-702 | 8405-072 | |
System | 8256-252 | Actuator-ProAct II (20-160 mA, Con Drv, Con Act, CW Act) | 8400-011 | 8300-216 (8405-025) | |
Actuator | 8300-215 | Actuator-ProAct I (8405-021 CW w/ Connector Kit) | 8405-021 | ||
Actuator | 8300-216 | Actuator-ProAct II (8405-025) CW w/ Connector Kit) | 8405-025 | ||
Actuator | 8300-222 | Actuator-ProAct II CW w/ Harness Kit | 8405-052 | ||
Driver Box | 8400-017 | Control-0-5 V ProAct II Driver IP56 | 8400-017 | ||
Driver Box | 8400-018 | CONTROL -13-20 MA PROACT II DRIVER IP-56 | 8400-018 | ||
Driver Box | 8400-019 | Control-4-13 mA ProAct II Driver IP56 | 8400-019 | ||
Driver Box | 8400-021 | Control-1 kHz PWM ProAct II Driver Non IP56 | 8400-021 | ||
Driver Box | 8400-022 | Control-0-5 V ProAct II Driver Non IP56 | 8400-022 | ||
Driver Box | 8400-023 | Control-13-20 mA ProAct II Driver Non IP56 | 8400-023 | ||
Driver Box | 8400-024 | Control-4-13 mA ProAct II Driver Non IP56 | 8400-024 | ||
Driver Box | 8400-025 | Control-4-20 mA ProAct II Driver Non IP56 | 8400-025 | ||
Driver Box | 8400-054 | Control-ProAct Model I Speed Control w/ Fuel Limit | 8400-054 | ||
Driver Box | 8400-058 | ProAct Speed Control w/ Fuel Limit (General Sale) | 8400-058 | ||
Driver Box | 8400-702 | Control-0-200 mA ProAct II Driver Non IP56 | 8400-702 | ||
Actuator | 8405-012 | Actuator-ProAct III, CCW, Conduit Connect | 8405-012 | ||
Actuator | 8405-023 | Actuator-ProAct I, CCW, Conduit Connect | 8405-023 | ||
Actuator | 8405-027 | Actuator-ProAct II, CCW, Conduit Connect | 8405-027 | ||
Actuator | 8405-028 | Actuator-ProAct I, CW, MS Connect | 8405-028 | ||
Actuator | 8405-030 | Actuator-ProAct I, CCW, MS Connect | 8405-030 | ||
Actuator | 8405-036 | Actuator-ProAct II, CW, MS Connector | 8405-036 | ||
Actuator | 8405-037 | Actuator-ProAct II, CW, Metric Mtg, MS Connect | 8405-037 | ||
Actuator | 8405-044 | Actuator-ProAct III, CW, Return Spring, MS Connect | 8405-044 | ||
Actuator | 8405-045 | Actuator-ProAct III, CCW, Return Spring, MS Connect | 8405-045 | ||
Actuator | 8405-049 | Actuator-R.H. Large Throttle ProAct III, w/ Conduit Connector | 8405-049 | ||
Actuator | 8405-051 | Actuator-ProAct I, CW, Conduit Connect, Threaded Shaft Hole | 8405-051 | ||
Actuator | 8405-054 | Actuator-ProAct IV, CW, Conduit Connect | 8405-054 | ||
Actuator | 8405-151 | Kit-ProAct II Actuator CCW Plus Connector | 8405-026 | ||
System | 8915-899 | System-Flo-Tech (8235-398) 120 CCW w/ ProAct II & Driver | 8400-016 | 8405-080 | |
System | 8915-961 | System-Flo-Tech (8235-400) 135 CCW w/ ProAct II & Driver | 8400-016 | 8405-080 | |
System | 8915-990 | SYSTEM -FLOTECH (8235-248) 107 CCW W/ PROACT II & DRIVER | 8400-016 | 8405-080 | |
Actuator | 8918-072 | Skid-1907 SLV w/o CDP w/ ProAct and LSOV | 8400-033 | ||
Speed Control | 9907-180 | Control-ProAct Model II Speed | 9907-180 | ||
Speed Control | 9907-255 | ProAct Model II Speed | 9907-255 | ||
Speed Control | 9907-809 | ProAct FUEL LIMITER 4-20MA, Short Chassis | 9907-809 |
Electrical plug to match plug on the actuator: ProAct I&II electrical plug is p/n 1630-243 (CONNECTOR -RECEPTACLE 7 PIN) ProAct III&IV electrical plug is p/n 1630-379 (CONNECTOR-RECEPTACLE MS3102R20-8P)
Model | Mating Connector p/n | Decription | manufactor description |
---|---|---|---|
I & II | 1631-187 | straight plug (Non-RoHS) | MS3106F20-8S |
I & II | 1631-633 | 90° plug (Non-RoHS) | MS3108R20-8S |
I & II | 1631-649 | 90° plug (RoHS) | |
III & IV | 5416-460 (1631-233 + 1633-641) | J1 Mating Connector straight, Driver only (to speed control) | MS3106E-20-8SW |
III & IV | 1631-639 | J2 Mating Connector 90° plug (RoHS), Driver and Actuator | MS3108E-20-8S |
III & IV | 5416-461 (1630-713 + 1633-641) | J2 Mating Connector straight, Driver and Actuator | MS3106E-20-8S |
III & IV | 203-889 | J3 Mating Connector, Driver only (position feedback 4-20 mA) | |
III & IV | 8923-188 (5416-460 + 2x 5416-461) | ProAct III/IV Connector Kit, (J1, J2 (2), no J3) |
* Directions are determined by looking at the actuator shaft and the rotation to increase fuel.
The ProAct Gen I Actuator models have different shaft dimensions
Model | Description |
---|---|
I/II | shaft end 0.500"-36 serrated |
III | shaft end 0.625"-36 serrated |
IV | shaft end 0.750"-48 serrated |
The ProAct Gen II & III Actuator models have all the same shaft dimensions, like the Model III from the Gen I. Shaft end 0.625"-36 serrated
Partnumber | Description | Generation - Model |
---|---|---|
3952-043 | LEVER-38.0 MM, 2 holes, for shaft end 0.500"-36 serrated | GEN-I, Model I&II |
3699-027 | LEVER-5.188 INC (5X ⌀.312 inch holes), for shaft end 0.500"-36 serrated | GEN-I, Model I&II |
13003 | LEVER-(BLANK) 228 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
37800 | LEVER-(BLANK) 101 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
5394-181 | KIT - LEVER-(3885-051) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-051 | LEVER-(BLANK) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-053 | LEVER-(3X ⌀ 12 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-057 | LEVER-(4X ⌀ 12 mm) 159 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-059 | LEVER-(3X ⌀ 8.5 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
32012 | LEVER-(BLANK) 228 mm, shaft end 0.750"-48 serrated | GEN-I, Model IV |
33201 | LEVER-(BLANK) 228 mm, shaft end 0.750"-48 serrated | GEN-I, Model IV |
37488 | LEVER-(BLANK) 279 mm, shaft end 0.750"-48 serrated | GEN-I, Model IV |
The ProAct Gen I Actuator models have different shaft dimensions
Model | Description |
---|---|
I/II | shaft end 0.500"-36 serrated |
III | shaft end 0.625"-36 serrated |
IV | shaft end 0.750"-48 serrated |
The ProAct Gen II & III Actuator models have all the same shaft dimensions, like the Model III from the Gen I. Shaft end 0.625"-36 serrated
Flexible Couplings for direct connection of the actuator output to e.g. a throttle valve shaft.
Partnumber | Description | Generation - Model |
---|---|---|
1431-431 | 0.500" to 0.250" ( 6.35mm), 2 holes, for shaft end 0.500"-36 serrated | GEN-I, Model I&II |
1431-433 | 0.500" to 0.312"( 7.92mm), for shaft end 0.500"-36 serrated | GEN-I, Model I&II | 1431-435 | 0.500" to 0.375" ( 9.53mm), for shaft end 0.500"-36 serrated | GEN-I, Model I&II |
1431-437 | 0.500" to 0.394" (10.00mm), for shaft end 0.500"-36 serrated | GEN-I, Model I&II | 1431-439 | 0.500" to 0.472" (12.00mm), for shaft end 0.500"-36 serrated | GEN-I, Model I&II |
1431-443 | 0.500" to 0.500" (12.70mm), for shaft end 0.500"-36 serrated | GEN-I, Model I&II | 1431-445 | 0.500" to 0.625" (15.88mm), for shaft end 0.500"-36 serrated | GEN-I, Model I&II |
1431-447 | 0.500" to 0.750" (19.05mm), for shaft end 0.500"-36 serrated | GEN-I, Model I&II | 1431-449 | 0.500" to 0.875" (22.23mm), 2 holes, for shaft end 0.500"-36 serrated | GEN-I, Model I&II |
1431-451 | 0.625" to 0.375" ( 9.53mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-453 | 0.625" to 0.394" (10.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-455 | 0.625" to 0.472" (12.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-457 | 0.625" to 0.500" (12.70mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-459 | 0.625" to 0.625" (15.88mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-463 | 0.625" to 0.750" (19.05mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-465 | 0.625" to 0.875" (22.23mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-467 | 0.625" to 1.000" (25.40mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-475 | 0.750" to 0.500" (12.70mm), shaft end 0.750"-48 serrated | GEN-I, Model IV |
1431-477 | 0.750" to 0.625" (15.88mm), shaft end 0.750"-48 serrated | GEN-I, Model IV |
1431-479 | 0.750" to 0.750" (19.05mm), shaft end 0.750"-48 serrated | GEN-I, Model IV |
1431-485 | 0.750" to 0.825" (22.23mm), shaft end 0.750"-48 serrated | GEN-I, Model IV |
1431-487 | 0.750" to 1.000" (25.40mm), shaft end 0.750"-48 serrated | GEN-I, Model IV |
Actuator model I and II to Driver with terminals
Part Number | Description |
---|---|
5417-729L4.75M | Length = 4.75 m |
5417-729L6.60M | Length = 6.60 m |
Actuator model III and IV to Driver with MS-connectors
Part Number | Description |
---|---|
5417-731L0.50M | Length = 0.50 m |
5417-731L2.00M | Length = 2.00 m |
5417-731L8.00M | Length = 8.00 m |
5417-731L13.0M | Length = 13.00 m |
5417-731L15.0M | Length = 15.00 m |
Actuator model III and IV to Driver with MS-connectors
Part Number | Description |
---|---|
5417-733L2.00M | Length = 2.00 m |
5417-733L3.00M | Length = 3.00 m |
5417-733L5.00M | Length = 5.00 m |
5417-733L8.00M | Length = 8.00 m |
Cable J1 not available for ProAct I / II, because there is no Driver for ProAct I / II with MS-receptacles but with conduits or with grommets only. Connect with simple wires.
Although the ProAct Generation II (2) product lines have reached end of life, Woodward has release the next generation of ProAct Gen3 (Flex) which would be backward compatible and meet ROHS, REACH, and marine compliance. The ProAct Generation 3 product line will offer a more accurate position sensor and a much more powerful processor core capable of implementing the latest software requirements.
ProAct | |||||
---|---|---|---|---|---|
Generation 2 | Generation 3 | ||||
Analog | Digital Plus | ISC (Intergrated Speed Control) | P-Series | GEN 3 | |
Size | |||||
Model I | ProAct I Analog | ProAct I Digital Plus | ProAct I ISC | - | - |
Model II | ProAct II Analog | ProAct II Digital Plus | ProAct II ISC | ProAct II P-Series | ProAct II GEN 3 |
Model III | - | ProAct III Digital Plus | ProAct III ISC | ProAct III P-Series | ProAct III GEN 3 |
Model IV | - | ProAct IV Digital Plus | ProAct IV ISC | ProAct IV P-Series | ProAct IV GEN 3 |
Extremely fast, bi-directional actuator, electronically positioned in both directions.
DESCRIPTION The ProAct Analog is a family of electric actuators with integral drivers intended to be mounted on-engine to control various functions including (but not limited to): fuel rack positioning, timing control, and throttle valve and wastegate positioning.
The device is effectively a position control which will accept a desired position signal from another device in the system, such as a speed control, and drive to that position. Each unit includes an analog driver interface capable of controlling the actuator, and provides a signal that represents throttle position. The actuator can be commanded to a position via 4-20mA, 0-200mA or PWM interfaces.
In addition, given an on board position feedback device, the actual position is available to the system through a position output signal of 0.5 - 4.5 Vdc. This is a highly filtered signal and may not be suitable for closed loop operation. Each member of the has a different input signal specification or bi-directional torque output capability. In addition, each actuator has a nominal rotation of 75° at the output shaft. Two levels of output torque are available, model I and II.
Stroking is done with placing jumpers, no handheld or computer is needed.
MOUNTING AND WIRING The actuators have a 0.625"-36 serrated tooth terminal shaft. It can be mounted in either a base mount or flange mount configuration.
SELECTION CHART
Model | Partnumber | Description | Replacement | Description |
---|---|---|---|---|
Model I | 8404-005 | ProAct Analog, PWM input | 8404-302 | ACTUATOR - PROACT GEN3, MODEL II (GENERAL SALE) |
Model II | 8404-006 | ProAct Analog, PWM input | 8404-302 | ACTUATOR - PROACT GEN3, MODEL II (GENERAL SALE) |
Model I | 8404-200 | ProAct Analog, input 0-200mA / 4-20mA | 8404-302 | ACTUATOR - PROACT GEN3, MODEL II (GENERAL SALE) |
Model II | 8404-201 | ProAct Analog, input 0-200mA / 4-20mA | 8404-302 | ACTUATOR - PROACT GEN3, MODEL II (GENERAL SALE) |
Flexible Couplings for direct connection of the actuator output to e.g. a throttle valve shaft. Fits for all ProAct Analog models (I and II)
Partnumber | Description | Generation - Model |
---|---|---|
1431-451 | 0.625" to 0.375" ( 9.53mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-453 | 0.625" to 0.394" (10.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-455 | 0.625" to 0.472" (12.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-457 | 0.625" to 0.500" (12.70mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-459 | 0.625" to 0.625" (15.88mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-463 | 0.625" to 0.750" (19.05mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-465 | 0.625" to 0.875" (22.23mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-467 | 0.625" to 1.000" (25.40mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
The ProAct Gen II Analog Actuator models have the same shaft end dimensions, 0.625"-36 serrated
Partnumber | Description | Generation - Model |
---|---|---|
13003 | LEVER-(BLANK) 228 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
37800 | LEVER-(BLANK) 101 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
5394-181 | KIT - LEVER-(3885-051) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-051 | LEVER-(BLANK) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-053 | LEVER-(3X ⌀ 12 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-057 | LEVER-(4X ⌀ 12 mm) 159 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-059 | LEVER-(3X ⌀ 8.5 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
Part Number | Description |
---|---|
1635-765 | MS-3106F-18-9S (Straight) |
1630-321 | MS-3108F-18-9S (90 Deg) |
Extremely fast, bi-directional actuator, electronically positioned in both directions.
DESCRIPTION The ProAct DIGITAL PLUS is a family of electric actuators with integral drivers intended to be mounted on-engine to control varying functions including (but not limited to): fuel rack positioning, timing control, and throttle valve and wastegate positioning. The device is effectively a position control which will accept a desired position signal from another device in the system, such as a speed control. Each unit includes a onboard software and intelligence to realize monitoring and customizing functions.
The actuator can be commanded to a position via 4-20mA, 0-200mA, PWM, or CAN interfaces. In addition, given an on board position feedback device, the actual position is available to the system through a position output signal (4-20 mA).
Each member of them has a different bi-directional torque output capability. In addition, each actuator has a nominal rotation of 75° at the output shaft. The units are designed to operate in an on-engine environment and can therefore withstand high levels of vibration and temperature extremes.
Stroking is done with a computer and Watch Windows or Control Assistant.
MOUNTING AND WIRING The actuators have a 0.625"-36 serrated tooth terminal shaft. It can be mounted in either a base mount or flange mount configuration. with the exception of the ProAct DIGITAL PLUS Model IV which can only be base mounted.
SELECTION CHART
Model | Part Number | Description | Cover | Replacement | Description | |
---|---|---|---|---|---|---|
I | 8404-028 | ProAct DIGITAL PLUS, Model I | A | 8404-328 | ACTUATOR PROACT GEN3 FLEX, MODEL II (BLANK, D+ CONFIG, GENERAL) | |
II | 8404-003 | ProAct DIGITAL PLUS, Model II | A | 8404-328 | ACTUATOR PROACT GEN3 FLEX, MODEL II (BLANK, D+ CONFIG, GENERAL) | |
III | 8404-026 | ProAct III DIGITAL PLUS, Model III | A | 8404-329 | ACTUATOR PROACT GEN3 FLEX, MODEL III (BLANK, D+ CONFIG, GENERAL) | |
III | 8404-027 | ProAct DIGITAL PLUS, Model III, hazardous locations | A | 8404-329 | ACTUATOR PROACT GEN3 FLEX, MODEL III (BLANK, D+ CONFIG, GENERAL) | |
II | 8404-114 | ProAct DIGITAL PLUS, Model II, (Wartsila configuration) | 8404-317 | ACTUATOR-PROACT GEN3 FLEX, MODEL II (SIDE GLANDS, D+ CONFIG, WINGD) | ||
IV | 8404-029 | ProAct IV DIGITAL PLUS, Model IV | A | 8404-330 | ACTUATOR PROACT GEN3 FLEX, MODEL IV (BLANK, D+ CONFIG, GENERAL) | |
I | 8404-007 | ProAct DIGITAL PLUS, Model I, hazardous locations | B | 8404-328 | ACTUATOR PROACT GEN3 FLEX, MODEL II (BLANK, D+ CONFIG, GENERAL) | |
II | 8404-008 | ProAct DIGITAL PLUS, Model II, hazardous locations | B | 8404-319 | ACTUATOR PROACT GEN3 FLEX, MODEL II (16-PIN (C/P/A), D+ CONFIG, GENERAL) | |
III | 8404-009 | ProAct DIGITAL PLUS, Model III, hazardous locations | B | 8404-318 | ACTUATOR PROACT GEN3 FLEX, MODEL III (16-PIN (C/P/A), D+ CONFIG, GENERAL) | |
IV | 8404-010 | ProAct DIGITAL PLUS, Model IV, hazardous locations | B | 8404-325 | ACTUATOR PROACT GEN3 FLEX, MODEL IV (16-PIN (C/P/A), D+ CONFIG, GENERAL) | |
IV | 8404-211 | ProAct DIGITAL PLUS, Model IV, (Gland) | B | 8404-325 | ACTUATOR PROACT GEN3 FLEX, MODEL IV (16-PIN (C/P/A), D+ CONFIG, GENERAL) | |
III | 8404-030 | PROACT DIGITAL PLUS, MODEL III, JENBACHER CONFIGURATION | 8404-314 | ACTUATOR-PROACT GEN3 FLEX, MODEL III (SIDE GLANDS, D+ CONFIG, JENBACHER) | ||
IV | 8404-039 | ProAct DIGITAL PLUS, Model IV, (Wartsila) | C | 8404-315 | ACTUATOR PROACT GEN3 FLEX, MODEL IV (BLANK, D+ CONFIG 3DEG STOP, GENERAL) | |
IV | 8404-042 | ProAct DIGITAL PLUS, Model IV, hazardous locations | C | 8404-330 | ACTUATOR PROACT GEN3 FLEX, MODEL IV (BLANK, D+ CONFIG, GENERAL) | |
IV | 8404-045 | ProAct DIGITAL PLUS, Model IV | D | 8404-316 | ACTUATOR PROACT GEN3 FLEX, MODEL IV (GLAND, D+ CONFIG, GENERAL) | |
III | 8404-049 | PROACT DIGITAL PLUS,MODEL III, JICHIA CONFIGURATION | 8404-332 | ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/P/A), D+ CONFIG, JICHAI) | ||
IV | 8404-061 | ProAct DIGITAL PLUS, Model IV, hazardous locations | 8404-313 | ACTUATOR PROACT GEN3 FLEX, MODEL IV (GLAND, D+ CONFIG, GENERAL) | ||
III | 8404-067 | PROACT DIGITAL PLUS,MODEL III (0~200MA DEFAULT) | 8404-318 | ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/P/A), D+ CONFIG, GENERAL) | ||
III | 8404-037 | ProAct DIGITAL PLUS, Model III, (Cummins 135 mm Throttle) | 8404-331 | ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/A), 57MM PILOT, NO INERTIA, D+, CUMMINS) | ||
III | 8404-216 | PROACT DIGITAL PLUS, MODEL III (CUMMINS PHASEII ENHANCED VIBRATION, NO INERTIA DISK) | 8404-333 | ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/A), 74MM PILOT, NO INERTIA, D+, CUMMINS) | ||
III | 8235-353 | CONTROL-135 MM ITB, PROACT III DIGI + ACTUATOR, MAGNAPLATE (3 BOLT DESIGN) | 8335-015 | CONTROL-135 MM ITB, PAG3 FLEX MODEL III (CUMMINS, D+, MAGNAPLATE, CERAMIC, 16-PIN C/A) | ||
III | 8235-316 | CONTROL-135 MM ITB, PROACT III DIGITAL PLUS (GEN II) ACTUATOR | 8335-014 | CONTROL-135 MM ITB, PAG3 FLEX MODEL III (MAN, D+, 32-40DF, 16-PIN C/P/A) | ||
IV | 8235-363 | THROTTLE-105 MM ITB, PROACT DIGITAL + MODEL IV, MAN | 8335-017 | CONTROL-105 MM ITB, PAG3 FLEX MODEL IV (MAN, COMPRESSOR BY-PASS, D+, 16-PIN C/P/A) | ||
IV | 8235-318 | CONTROL-180 MM THROTTLE BODY W/ PROACT IV DIGITAL PLUS (JICHAI) | 8335-016 | CONTROL-180 MM ITB, PAG3 FLEX MODEL IV (JICHAI, D+, 16-PIN C/P/A) | ||
III | N/A | 8404-324 | ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/P/A), D+ CONFIG, ITB ONLY) | |||
IV | N/A | 8404-325 | ACTUATOR-PROACT GEN3 FLEX, MODEL IV (16-PIN (C/P/A), D+ CONFIG, GENERAL) | |||
IV | N/A | 8404-326 | ACTUATOR-PROACT GEN3 FLEX, MODEL IV (16-PIN (C/P/A), D+ CONFIG, ITB ONLY) | |||
III | N/A | 8404-334 | ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/A), D+ CONFIG, ITB ONLY) NO BRANDING | |||
IV | N/A | 8404-336 | ACTUATOR-PROACT GEN3 FLEX, MODEL IV (SIDE GLANDS, D+ CONFIG 3DEG STOP, WINGD) |
Flexible Couplings for direct connection of the actuator output to e.g. a throttle valve shaft. Fits for all ProAct Digital models (I - IV)
Partnumber | Description | Generation - Model |
---|---|---|
1431-451 | 0.625" to 0.375" ( 9.53mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-453 | 0.625" to 0.394" (10.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-455 | 0.625" to 0.472" (12.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-457 | 0.625" to 0.500" (12.70mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-459 | 0.625" to 0.625" (15.88mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-463 | 0.625" to 0.750" (19.05mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-465 | 0.625" to 0.875" (22.23mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-467 | 0.625" to 1.000" (25.40mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
The ProAct Gen II Digital Plus Actuator models have the same shaft end dimensions, 0.625"-36 serrated
Partnumber | Description | Generation - Model |
---|---|---|
13003 | LEVER-(BLANK) 228 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
37800 | LEVER-(BLANK) 101 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
5394-181 | KIT - LEVER-(3885-051) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-051 | LEVER-(BLANK) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-053 | LEVER-(3X ⌀ 12 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-057 | LEVER-(4X ⌀ 12 mm) 159 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-059 | LEVER-(3X ⌀ 8.5 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
Only for those actuators with MS connector sockets (covers B and C)
Part Number | Description |
---|---|
1635-563 | MS-3106F-24-7S (straight) |
SELECTION CHART
Model | Part Number | Description | Cover A) | Cover B) | Cover C) | Cover D) |
---|---|---|---|---|---|---|
I | 8404-028 | ProAct DIGITAL PLUS, Model I | X | |||
II | 8404-003 | ProAct DIGITAL PLUS, Model II | X | |||
III | 8404-026 | ProAct III DIGITAL PLUS, Model III | X | |||
III | 8404-027 | ProAct DIGITAL PLUS, Model III, hazardous locations | X | |||
IV | 8404-029 | ProAct IV DIGITAL PLUS, Model IV | X | |||
I | 8404-007 | ProAct DIGITAL PLUS, Model I, hazardous locations | X | |||
II | 8404-008 | ProAct DIGITAL PLUS, Model II, hazardous locations | X | |||
III | 8404-009 | ProAct DIGITAL PLUS, Model III, hazardous locations | X | |||
IV | 8404-010 | ProAct DIGITAL PLUS, Model IV, hazardous locations | X | |||
IV | 8404-042 | ProAct DIGITAL PLUS, Model IV, hazardous locations | X | |||
IV | 8404-045 | ProAct DIGITAL PLUS, Model IV | X |
Extremely fast, bi-directional actuator, electronically positioned in both directions.
DESCRIPTION The ProAct™ Integrated Speed Control (ISC) is an actuator with an integrated electronic driver, capable of either speed control or positioning tasks. Configured as a speed controller, it can be mounted on-engine to control a diesel fuel rack or gaseous throttle via linkage or integrated throttle body and accepts a speed input from a variable reluctance speed sensor, commonly called an MPU, and can accept software selectable speed setpoints, dynamics, fuel limiting, and start/stop behaviour. Offers a wide variety of speed control features: Dynamics settings, dual rated speed setting, idle/rated speed setting, raise or lower speed modifier, analog input speed modifier, analog raise and lower speed modifier, droop, dual dynamics, analog outputs, and discrete outputs. The control also allows isochronous load sharing, and monitors key internal and external signals, and annunciates any detected faults through a discrete output.
The control may also be user-configured as a position control (actuator) accepting an analog position command signal and offering software selectable CW/CCW operation and field calibration.
A discrete input is available to remotely shut down the control. The control can be mounted on-engine and annunciates any detected faults through a discrete output. Additional features of the ProAct ISC include on-line and off-line diagnostics, current limiting based on driver electronics temperature, and service port communications. The control is field programmable, allowing a single design to be used in many different applications. It must be configured and calibrated to the specific engine with a personal computer (PC) and the ProAct ISC Service Tool that communicates serially to the control via RS-232 using Woodward’s DDE ServLink protocol.
Stroking is done with a computer and ProAct tool.
MOUNTING AND WIRING The actuators have a 0.625"-36 serrated tooth terminal shaft. It can be mounted in either a base mount or flange mount configuration. with the exception of the ProAct ISC Model IV which can only be base mounted.
SELECTION CHART PISC ACTUATOR
Model | Part Number | Description | Cover | Replacement | Description | |
---|---|---|---|---|---|---|
I | 8404-203 | ACTUATOR-PROACT ISC, MODEL I | There is for the PISC not a GEN III replacement | |||
II | 8404-204 | ACTUATOR-PROACT ISC, MODEL II | There is for the PISC not a GEN III replacement | |||
III | 8404-213 | ACTUATOR-PROACT ISC, MODEL III | There is for the PISC not a GEN III replacement | |||
IV | 8404-214 | ACTUATOR-PROACT ISC, MODEL IV (GENERAL SALE) | There is for the PISC not a GEN III replacement |
SELECTION CHART PISC ITB
Model | Part Number | Description | Cover | Replacement | Description | |
---|---|---|---|---|---|---|
85 | 8235-339 | CONTROL-85 MM ITB, PROACT ISC, HIGH TEMP BEARINGS | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
95 | 8235-337 | CONTROL-95 MM ITB, PROACT ISC, HIGH TEMP BEARINGS | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
105 | 8235-198 | CONTROL-105 MM ITB, PROACT II W/ INTEGRATED SPEED CONTROL | 8404-204, ACTUATOR-PROACT ISC, MODEL II | There is for the PISC not a GEN III replacement | ||
105 | 8235-260 | CONTROL-105 MM ITB, PROACT II ISC, W/HIGH TEMP BEARINGS | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
105 | 8235-261 | CONTROL-105 MM ITB, PROACT II ISC, W/HIGH TEMP BEARINGS - LOW SPEED CONFIGURATION | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
105 | 8235-361 | CONTROL-105 MM ITB, PROACT ISC, MODEL II, HIGH TEMP (GENERIC CONFIG) | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
120 | 8235-305 | CONTROL-120 MM ITB, PROACT II W/ INTEGRATED SPEED CONTROL | 8404-204, ACTUATOR-PROACT ISC, MODEL II | There is for the PISC not a GEN III replacement | ||
120 | 8235-350 | CONTROL-120 MM ITB, PROACT III W/ INTEGRATED SPEED CONTROL | 8404-057, ACTUATOR-PROACT ISC, MODEL III (ITB ONLY) | There is for the PISC not a GEN III replacement | ||
135 | 8235-360 | CONTROL-135MM ITB (MODEL III PISC W/ IMPROVED ISOLATION) GENERAL SALE | 8404-057, ACTUATOR-PROACT ISC, MODEL III (ITB ONLY) | There is for the PISC not a GEN III replacement |
Flexible Couplings for direct connection of the actuator output to e.g. a throttle valve shaft. Fits for all ProAct ISC models (I - IV)
Partnumber | Description | Generation - Model |
---|---|---|
1431-451 | 0.625" to 0.375" ( 9.53mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-453 | 0.625" to 0.394" (10.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-455 | 0.625" to 0.472" (12.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-457 | 0.625" to 0.500" (12.70mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-459 | 0.625" to 0.625" (15.88mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-463 | 0.625" to 0.750" (19.05mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-465 | 0.625" to 0.875" (22.23mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-467 | 0.625" to 1.000" (25.40mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
The ProAct Gen II PISC models have the same shaft end dimensions, 0.625"-36 serrated
Partnumber | Description | Generation - Model |
---|---|---|
13003 | LEVER-(BLANK) 228 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
37800 | LEVER-(BLANK) 101 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
5394-181 | KIT - LEVER-(3885-051) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-051 | LEVER-(BLANK) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-053 | LEVER-(3X ⌀ 12 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-057 | LEVER-(4X ⌀ 12 mm) 159 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-059 | LEVER-(3X ⌀ 8.5 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
All ProAct ISC actuators are equipped with a MS3102E24-28P receptacle, cover E)
Part Number | Description | original parts |
---|---|---|
6995-1021 | KIT-STRAIGHT PLUG CONNECTOR (1635-1113), | |
1635-1113 | 24 pin 3106-24-28S, crimp (straight) |
Amphenol Contacts: P/N 10-597109-171 (CRIMP) Amphenol Sealing Plugs P/N 10-405996-16
Cannon Contacts: P/N 031-0560-161 (CRIMP) Cannon Sealing Plugs: P/N 225-0017-000 |
1635-1028 | 24 pin 3106-24-28S, solder (straight) |

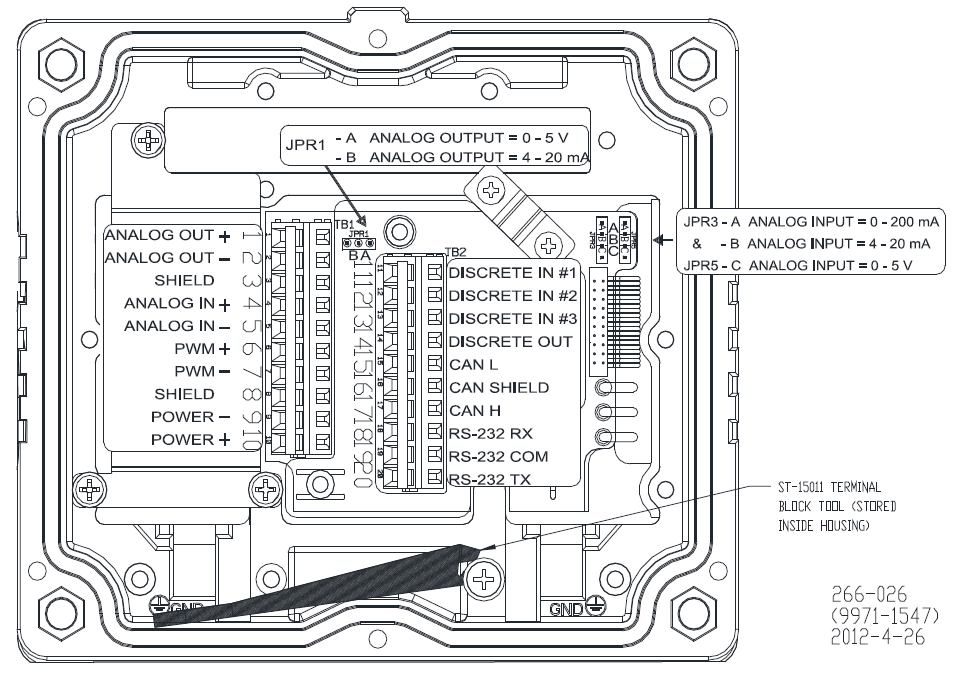

Extremely fast, bi-directional actuator, electronically positioned in both directions.
DESCRIPTION The ProAct provides a building block approach to total engine management. The modular bi-directional actuator design easily attaches to fuel pumps, fuel valves or throttle bodies. There are three ProAct models (II, III, IV) that provide a wide range of work outputs.
Two similar variations of the ProAct P-Series are available: the standard version and the FL version. The standard ProAct P-Series, utilizes a 24-pin circular connector for customer I/O, whereas the FL version has terminal block connections. The FL (flex) version can be adapted into a variety of existing systems by adding a connector kit or by directly landing wires to terminal blocks. The P-Series FL also provides additional options of (0 to 200) mA Analog Input range and (0 to 5) V (dc) Analog Output range.
It must be configured and calibrated to the specific engine with a personal computer (PC) and the ProAct P-series Service Tool that communicates serially to the control via RS-232 using Woodward's DDE ServLink protocol.
Stroking is done with a PC-based ProAct tool.
MOUNTING AND WIRING The actuators have a 0.625"-36 serrated tooth terminal shaft. It can be mounted in either a base mount or flange mount configuration. with the exception of the ProAct P-series Model IV which can only be base mounted.
SELECTION CHART P-Series
Model | Part Number | Description | Cover | Replacement | Description | |
---|---|---|---|---|---|---|
I | ||||||
II | 8404-091 | ACTUATOR-PROACT P-SERIES, MODEL II (GENERAL SALE) | E | 8404-302 | ACTUATOR - PROACT GEN3, MODEL II (GENERAL SALE) | |
III | 8404-093 | ACTUATOR-PROACT P-SERIES, MODEL III (GENERAL SALE) | E | 8404-303 | ACTUATOR - PROACT GEN3, MODEL III (GENERAL SALE) | |
IV | 8404-094 | ACTUATOR-PROACT P-SERIES, MODEL IV (GENERAL SALE) | E | 8404-304 | ACTUATOR - PROACT GEN3, MODEL IV (GENERAL SALE) |
SELECTION CHART P-Series FL Flying Leads
Model | Part Number | Description | Cover | Replacement | Description | |
---|---|---|---|---|---|---|
I | ||||||
II | 8404-106 | ACTUATOR-PROACT P-SERIES FL, MODEL II (GENERAL SALE, B-C-C) | 8404-307 | PROACT GEN3 FLEX, MODEL II (BLANK, GENERAL SALE) | ||
III | 8404-107 | ACTUATOR-PROACT P-SERIES FL, MODEL III (GENERAL SALE, B-C-C) | 8404-308 | PROACT GEN3 FLEX, MODEL III (BLANK, GENERAL SALE) | ||
IV | 8404-108 | ACTUATOR-PROACT P-SERIES FL, MODEL IV (GENERAL SALE, B-C-C) | 8404-309 | PROACT GEN3 FLEX, MODEL IV (BLANK, GENERAL SALE) |
SELECTION CHART P-Series FL Flying Leads + MS Connector
Model | Part Number | Description | Cover | Replacement | Description | |
---|---|---|---|---|---|---|
I | ||||||
II | 8404-104 | ACTUATOR-PROACT P-SERIES FL, MODEL II (7-PIN, PWM, A-C-C) | 8404-320 | PROACT GEN3 FLEX, MODEL II (7-PIN, PWM, ANALOG CONFIG, GENERAL) | ||
II | 8404-105 | ACTUATOR-PROACT P-SERIES FL, MODEL II (7-PIN, 4-20MA, A-B-B) | 8404-321 | PROACT GEN3 FLEX, MODEL II (7-PIN, 4-20MA, ANALOG CONFIG, GENERAL) | ||
II | 8404-109 | ACTUATOR-PROACT P-SERIES FL, MODEL II (6-PIN 1M LEAD, PWM, A-C-C) | 8404-322 | PROACT GEN3 FLEX, MODEL II (6-PIN 1M LEAD, PWM) | ||
II | 8404-110 | ACTUATOR-PROACT P-SERIES FL, MODEL II (6-PIN 1M LEAD, 0-200, A-A-A) | 8404-323 | PROACT GEN3 FLEX, MODEL II (6-PIN 1M LEAD, 0-200) |
SELECTION CHART P-Series ITB
Model | Part Number | Description | Cover | Replacement | Description | |
---|---|---|---|---|---|---|
II | 8235-369 | CONTROL-85 MM ITB, PROACT P-SERIES MODEL II (GENERAL SALE) | ||||
II | 8235-370 | CONTROL-95 MM ITB, PROACT P-SERIES MODEL II (GENERAL SALE) | ||||
II | 8235-365 | CONTROL-105 MM ITB, PROACT P-SERIES MODEL II (GENERAL SALE) | ||||
II | 8235-366 | CONTROL-120 MM ITB, PROACT P-SERIES MODEL II (GENERAL SALE) | ||||
III | 8235-371 | CONTROL-135 MM ITB, PROACT P-SERIES MODEL III (GENERAL SALE) | ||||
III | 8235-374 | CONTROL-160MM (AL) THROTTLE BODY WITH P-SERIES MODEL III, GENERAL SALE | ||||
IV | 8235-375 | CONTROL-180MM (AL) THROTTLE BODY WITH P-SERIES MODEL IV |
SELECTION CHART P-Series ITB FL Flying Leads
Model | Part Number | Description | Cover | Replacement | Description | |
---|---|---|---|---|---|---|
II | 8235-415 | CONTROL-120 MM ITB, PROACT P-SERIES FL MODEL II (7-PIN PWM, A-C-C) | ||||
II | 8235-416 | CONTROL-120 MM ITB, PROACT P-SERIES FL MODEL II (7-PIN ANALOG, 4-20MA, A-B-B) | ||||
II | 8235-420 | CONTROL-120 MM ITB, PROACT P-SERIES FL MODEL II (GENERAL SALE, B-C-C) |
Flexible Couplings for direct connection of the actuator output to e.g. a throttle valve shaft. Fits for all ProAct P-Series models (I - IV)
Partnumber | Description | Generation - Model |
---|---|---|
1431-451 | 0.625" to 0.375" ( 9.53mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-453 | 0.625" to 0.394" (10.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-455 | 0.625" to 0.472" (12.00mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-457 | 0.625" to 0.500" (12.70mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-459 | 0.625" to 0.625" (15.88mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-463 | 0.625" to 0.750" (19.05mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-465 | 0.625" to 0.875" (22.23mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
1431-467 | 0.625" to 1.000" (25.40mm), for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
The ProAct Gen II P-Series Actuator models have the same shaft end dimensions, 0.625"-36 serrated
Partnumber | Description | Generation - Model |
---|---|---|
13003 | LEVER-(BLANK) 228 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
37800 | LEVER-(BLANK) 101 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
5394-181 | KIT - LEVER-(3885-051) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-051 | LEVER-(BLANK) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-053 | LEVER-(3X ⌀ 12 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-057 | LEVER-(4X ⌀ 12 mm) 159 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
3885-059 | LEVER-(3X ⌀ 8.5 mm) 127 mm, for shaft end 0.625"-36 serrated | GEN-I - Model III, GEN-II - All models, GEN-III - All models |
(General) ProAct P-Series actuators are equipped with a MS3102E24-28P receptacle, cover E)
Or flying leads (FL).
Or special 6-pin, 7-pin or 16-pin MS connector
24-pin MS3102E24-28P receptacle, cover E)
Part Number | Description | original parts |
---|---|---|
6995-1021 | KIT-STRAIGHT PLUG CONNECTOR (1635-1113), | |
1635-1113 | 24 pin 3106-24-28S, crimp (straight) |
Amphenol Contacts: P/N 10-597109-171 (CRIMP) Amphenol Sealing Plugs P/N 10-405996-16
Cannon Contacts: P/N 031-0560-161 (CRIMP) Cannon Sealing Plugs: P/N 225-0017-000 |
1635-2794 | 24 pin 3106-24-28S, solder (straight) | CONNECTOR-PLUG - Amphenol Connector: P/N ACS06E24-28S(472) |
1635-1028 | 24 pin 3106-24-28S, solder (straight) | CONNECTOR-PLUG - ITT CANNON CA3106E2428SB01 |
SELECTION CHART ITB
ITB MM | Part Number | Description | ACTUATOR | Replacement | Description | |
---|---|---|---|---|---|---|
85 | 8235-336 | CONTROL-85 MM ITB, PROACT ISC, CUMMINS, NO O-RING, HIGH TEMP BEARINGS | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
85 | 8235-339 | CONTROL-85 MM ITB, PROACT ISC, HIGH TEMP BEARINGS | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
85 | 8235-351 | CONTROL-85MM ITB, PISC III, HIGH PRESS, JENBACHER | There is for the PISC not a GEN III replacement | |||
85 | 8235-369 | CONTROL-85 MM ITB, PROACT P-SERIES MODEL II (GENERAL SALE) | 8404-091, ACTUATOR-PROACT P-SERIES, MODEL II (GENERAL SALE) | - | ||
95 | 8235-337 | CONTROL-95 MM ITB, PROACT ISC, HIGH TEMP BEARINGS | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
95 | 8235-354 | CONTROL-95 MM ITB, PROACT ISC, HIGH TEMP BEARINGS (YANMAR)) | There is for the PISC not a GEN III replacement | |||
95 | 8235-370 | CONTROL-95 MM ITB, PROACT P-SERIES MODEL II (GENERAL SALE) | 8404-091, ACTUATOR-PROACT P-SERIES, MODEL II (GENERAL SALE) | - | ||
105 | 8235-191 | CONTROL-105 MM ITB, PROACT II ANALOG (GEN II) ACTUATOR | 8404-031, ACTUATOR-PROACT ANALOG, MODEL II, CURRENT | There is for the PISC not a GEN III replacement | ||
105 | 8235-193 | CONTROL-105 MM ITB, PROACT II PWM (GEN II) ACTUATOR | 8404-032, ACTUATOR-PROACT ANALOG, MODEL II, PWM | There is for the PISC not a GEN III replacement | ||
105 | 8235-194 | CONTROL-105 MM ITB, PROACT II DIGITAL (GEN II) ACTUATOR | 8404-022, ACTUATOR-PROACT DIGITAL PLUS, MODEL II | There is for the PISC not a GEN III replacement | ||
105 | 8235-198 | CONTROL-105 MM ITB, PROACT II W/ INTEGRATED SPEED CONTROL | 8404-204, ACTUATOR-PROACT ISC, MODEL II | There is for the PISC not a GEN III replacement | ||
105 | 8235-260 | CONTROL-105 MM ITB, PROACT II ISC, W/HIGH TEMP BEARINGS | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
105 | 8235-261 | CONTROL-105 MM ITB, PROACT II ISC, W/HIGH TEMP BEARINGS - LOW SPEED CONFIGURATION | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
105 | 8235-270 | CONTROL-105 MM ITB, PROACT II ISC, CUMMINS KTA38GC- IMPRVED HI SPD CONFIG (3642917) | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
105 | 8235-272 | CONTROL-105 MM ITB, PROACT II ISC, CUMMINS KTA38GC (3642918) - IMPROVED LOW SPEED CONFIG | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
105 | 8235-361 | CONTROL-105 MM ITB, PROACT ISC, MODEL II, HIGH TEMP (GENERIC CONFIG) | 8404-206, ACTUATOR-PROACT ISC, MODEL II (UNCONFIGURED) | There is for the PISC not a GEN III replacement | ||
105 | 8235-363 | THROTTLE-105 MM ITB, PROACT DIGITAL + MODEL IV, MAN | 8404-010, ACTUATOR-PROACT DIGITAL PLUS, MODEL IV (GENERAL SALE) | There is for the PISC not a GEN III replacement | ||
105 | 8235-365 | CONTROL-105 MM ITB, PROACT P-SERIES MODEL II (GENERAL SALE) | 8404-091, ACTUATOR-PROACT P-SERIES, MODEL II (GENERAL SALE) | |||
105 | 8235-431 | CONTROL-105 MM ITB, PROACT P-SERIES MODEL II (MTU, NO POINTER) | 8404-091, ACTUATOR-PROACT P-SERIES, MODEL II (GENERAL SALE) | - | ||
105 | 8335-012 | CONTROL-105 MM ITB, PROACT GEN3 MODEL II (MTU, CLOSED CAP, CERAMIC) | 8404-335, ACTUATOR-PROACT GEN3, MODEL II (CERAMIC, GENERAL) | 8335-012 | CONTROL-105 MM ITB, PROACT GEN3 MODEL II (MTU, CLOSED CAP, CERAMIC) | 8404-335, ACTUATOR-PROACT GEN3, MODEL II (CERAMIC, GENERAL) |
105 | 8335-022 | CONTROL-105 MM ITB, PAG3 FLEX MODEL II (7-PIN PWM, MTU, CLOSED CAP, CERAMIC) | 8404-339, ACTUATOR-PROACT GEN3 FLEX, MODEL II (7-PIN, PWM, ANALOG CONFIG, CERAMIC, GENERAL) | 8335-022 | CONTROL-105 MM ITB, PAG3 FLEX MODEL II (7-PIN PWM, MTU, CLOSED CAP, CERAMIC) | 8404-339, ACTUATOR-PROACT GEN3 FLEX, MODEL II (7-PIN, PWM, ANALOG CONFIG, CERAMIC, GENERAL) |
107 | 8235-248 | CONTROL-107MM BORE, THROTTLE BODY W/PROACT II, W/MS CONN, POSN CTRL | 8405-080, ACTUATOR-PROACT II, CCW, MS CONNECTOR, FOR FLOTECH THROTTLE ONLY, POSN CTRLRN | |||
107 | 8235-249 | CONTROL-107MM BORE, THROTTLE BODY W/PROACT II, W/MS CONN, SPEED CTRL | 8405-081, ACTUATOR-PROACT II, CCW, MS CONNECTOR, FOR FLOTECH THROTTLE ONLY, SPEED CTRL | |||
120 | 8235-187 | CONTROL-120 MM ITB, PROACT II DIGITAL PLUS (GEN II) ACTUATOR | 8404-022, ACTUATOR-PROACT DIGITAL PLUS, MODEL II | - | ||
120 | 8235-190 | CONTROL-120 MM ITB, PROACT II ANALOG (GEN II) ACTUATOR | 8404-031, ACTUATOR-PROACT ANALOG, MODEL II, CURRENT | - | ||
120 | 8235-195 | CONTROL-120 MM, PROACT II ANALOG PWM (GEN II) ACTUATOR | 8404-032, ACTUATOR-PROACT ANALOG, MODEL II, PWM | - | ||
120 | 8235-305 | CONTROL-120 MM ITB, PROACT II W/ INTEGRATED SPEED CONTROL | 8404-204, ACTUATOR-PROACT ISC, MODEL II | There is for the PISC not a GEN III replacement | ||
120 | 8235-347 | CONTROL-120 MM ITB, PROACT III DIGITAL PLUS (GEN II) ACTUATOR (MAN) | 8404-056, ACTUATOR-PROACT DIGITAL PLUS (GEN II), MODEL III | - | ||
120 | 8235-350 | CONTROL-120 MM ITB, PROACT III W/ INTEGRATED SPEED CONTROL | 8404-057, ACTUATOR-PROACT ISC, MODEL III (ITB ONLY) | There is for the PISC not a GEN III replacement | ||
120 | 8235-366 | CONTROL-120 MM ITB, PROACT P-SERIES MODEL II (GENERAL SALE) | 8404-091, ACTUATOR-PROACT P-SERIES, MODEL II (GENERAL SALE) | - | ||
120 | 8235-398 | CONTROL-120MM BORE, THROTTLE BODY W/ PROACT II, W/MS CONNECTOR, POSN CTRL | 8405-080, ACTUATOR-PROACT II, CCW, MS CONNECTOR, FOR FLOTECH THROTTLE ONLY, POSN CTRLRN | |||
120 | 8235-399 | CONTROL-120MM BORE, THROTTLE BODY W/ PROACT II, W/MS CONNECTOR, SPEED CTRL | 8405-081, ACTUATOR-PROACT II, CCW, MS CONNECTOR, FOR FLOTECH THROTTLE ONLY, SPEED CTRLN | - | ||
120 | 8235-404 | CONTROL-120MM BORE, THROTTLE BODY W/ PROACT II, W/MS CONNECTOR, NO RETURN SPRING, POSN CTRL | 8405-090, ACTUATOR-PROACT II, CCW, MS CONNECT, NO RETURN SPRING, POSN CTRL | - | ||
120 | 8235-406 | CONTROL-120MM BORE, THROTTLE BODY W/ PROACT II, W/MS CONNECTOR, NO RETURN SPRING, SPEED CTRL | 8405-091, ACTUATOR-PROACT II, CCW, MS CONNECT, NO RETURN SPRING, SPEED CTRL | - | ||
120 | 8235-415 | CONTROL-120 MM ITB, PROACT P-SERIES FL MODEL II (7-PIN PWM) | 8404-104, ACTUATOR-PROACT P-SERIES FL, MODEL II (7-PIN, PWM, A-C-C) | - | ||
120 | 8235-416 | CONTROL-120 MM ITB, PROACT P-SERIES FL MODEL II (7-PIN ANALOG) | 8404-105, ACTUATOR-PROACT P-SERIES FL, MODEL II (7-PIN, 4-20MA, A-B-B) | - | ||
120 | 8235-420 | CONTROL-120 MM ITB, PROACT P-SERIES FL MODEL II (GENERAL SALE) | 8404-106, ACTUATOR-PROACT P-SERIES FL, MODEL II (GENERAL SALE, B-C-C) | - | ||
120 | 8235-423 | CONTROL-P-SERIES 120M ITB (GUASCOR CONFIG) | 8404-093, ACTUATOR-PROACT P-SERIES, MODEL III (GENERAL SALE) ACTUATOR | - | ||
120 | 8235-432 | CONTROL-120 MM ITB, PROACT P-SERIES MODEL II (MTU, NO POINTER) | 8404-091, ACTUATOR-PROACT P-SERIES, MODEL II (GENERAL SALE) | - | ||
120 | 8235-435 | CONTROL-120 MM ITB, PROACT P-SERIES FL MODEL II (7-PIN PWM, MTU) | 8404-104, ACTUATOR-PROACT P-SERIES FL, MODEL II (7-PIN, PWM, A-C-C) | - | ||
120 | 8335-013 | CONTROL-120 MM ITB, PROACT GEN3 MODEL II (MTU, CLOSED CAP, CERAMIC) | 8404-335, ACTUATOR-PROACT GEN3, MODEL II (CERAMIC, GENERAL) | 8335-013 | CONTROL-120 MM ITB, PROACT GEN3 MODEL II (MTU, CLOSED CAP, CERAMIC) | 8404-335, ACTUATOR-PROACT GEN3, MODEL II (CERAMIC, GENERAL) |
120 | 8335-023 | CONTROL-120 MM ITB, PAG3 FLEX MODEL II (7-PIN PWM, MTU, CLOSED CAP, CERAMIC | 8404-339, ACTUATOR-PROACT GEN3 FLEX, MODEL II (7-PIN, PWM, ANALOG CONFIG, CERAMIC, GENERAL) | 8335-023 | CONTROL-120 MM ITB, PAG3 FLEX MODEL II (7-PIN PWM, MTU, CLOSED CAP, CERAMIC | 8404-339, ACTUATOR-PROACT GEN3 FLEX, MODEL II (7-PIN, PWM, ANALOG CONFIG, CERAMIC, GENERAL) |
135 | 8235-172 | CONTROL-135MM BORE, THROTTLE BODY W/ PROACT III W/MS CONNECTOR | 8405-082, ACTUATOR-PROACT III, CCW, MS CONNECT, POSN CTRL (R.H. LARGE THROTTLE, CUMMINS) | - | ||
135 | 8235-189 | CONTROL-135 MM ITB, PROACT III DIGITAL PLUS (GEN II) ACTUATOR | 8404-033, ACTUATOR-PROACT DIGITAL PLUS (GEN II), MODEL III | - | ||
135 | 8235-313 | CONTROL-135 MM ITB W/BOLT CLEARANCE NOTCH, PROACT III DIGITAL PLUS (GEN II) ACTUATOR | 8404-052, ACTUATOR-PROACT DIGITAL PLUS (GEN II), MODEL III - CUMMINS QSK60 CONFIG | - | ||
135 | 8235-314 | CONTROL-135MM THROTTLE BODY WITH PROACT III, MS CONNECTOR (MAGNAPLATED HOUSING AND THROTTLE PLATE) | 8405-082, ACTUATOR-PROACT III, CCW, MS CONNECT, POSN CTRL (R.H. LARGE THROTTLE, CUMMINS) | - | ||
135 | 8235-316 | CONTROL-135 MM ITB, PROACT III DIGITAL PLUS (GEN II) ACTUATOR | 8404-056, ACTUATOR-PROACT DIGITAL PLUS (GEN II), MODEL III | - | ||
135 | 8235-330 | CONTROL-135 MM ITB, PROACT III DIGITAL PLUS (GEN II) ACTUATOR, MAGNAPLATED THROTTLE PLATE AND HOUSING | 8404-052, ACTUATOR-PROACT DIGITAL PLUS (GEN II), MODEL III - CUMMINS QSK60 CONFIG | - | ||
135 | 8235-352 | CONTROL-135MM ITB (MODEL III PISC W/ IMPROVED ISOLATION) YANMAR | 8404-057, ACTUATOR-PROACT ISC, MODEL III (ITB ONLY) | There is for the PISC not a GEN III replacement | ||
135 | 8235-353 | CONTROL-135 MM ITB, PROACT III DIGI + ACTUATOR, MAGNAPLATE (3 BOLT DESIGN) | 8404-052, ACTUATOR-PROACT DIGITAL PLUS (GEN II), MODEL III - CUMMINS QSK60 CONFIG | - | ||
135 | 8235-360 | CONTROL-135MM ITB (MODEL III PISC W/ IMPROVED ISOLATION) GENERAL SALE | 8404-057, ACTUATOR-PROACT ISC, MODEL III (ITB ONLY) | There is for the PISC not a GEN III replacement | ||
135 | 8235-371 | CONTROL-135 MM ITB, PROACT P-SERIES MODEL III (GENERAL SALE) | 8404-093, ACTUATOR-PROACT P-SERIES, MODEL III (GENERAL SALE) ACTUATOR | - | ||
135 | 8235-400 | CONTROL-135MM BORE,THROTTLE BODY W/PROACT II, W/MS CONNECTOR, POSN CTRL | 8405-080, ACTUATOR-PROACT II, CCW, MS CONNECTOR, FOR FLOTECH THROTTLE ONLY, POSN CTRLRN | - | ||
135 | 8335-010 | CONTROL-135 MM ITB, PAG3 FLEX MODEL III (CUMMINS, CW CLOCKING, 10-PIN FL) | 8404-311, ACTUATOR-PROACT GEN3 FLEX, MODEL III (10-PIN FL, CUMMINS INSITE) | 8335-010 | CONTROL-135 MM ITB, PAG3 FLEX MODEL III (CUMMINS, CW CLOCKING, 10-PIN FL) | 8404-311, ACTUATOR-PROACT GEN3 FLEX, MODEL III (10-PIN FL, CUMMINS INSITE) |
135 | 8335-014 | CONTROL-135 MM ITB, PAG3 FLEX MODEL III (MAN, D+, 32-40DF, 16-PIN C/P/A) | 8404-324, ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/P/A), D+ CONFIG, ITB ONLY) | 8335-014 | CONTROL-135 MM ITB, PAG3 FLEX MODEL III (MAN, D+, 32-40DF, 16-PIN C/P/A) | 8404-324, ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/P/A), D+ CONFIG, ITB ONLY) |
135 | 8335-015 | CONTROL-135 MM ITB, PAG3 FLEX MODEL III (CUMMINS, D+, MAGNAPLATE, CERAMIC, 16-PIN C/A) | 8404-334, ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/A), D+ CONFIG, ITB ONLY) NO BRANDING | 8335-015 | CONTROL-135 MM ITB, PAG3 FLEX MODEL III (CUMMINS, D+, MAGNAPLATE, CERAMIC, 16-PIN C/A) | 8404-334, ACTUATOR-PROACT GEN3 FLEX, MODEL III (16-PIN (C/A), D+ CONFIG, ITB ONLY) NO BRANDING |
135 | 8335-024 | CONTROL-135 MM ITB, PROACT GEN3 MODEL III (SIDE GLANDS, GENERAL SALE) | 8404-337, ACTUATOR-PROACT GEN3 FLEX, MODEL III (SIDE GLANDS, GENERAL SALE) | 8335-024 | CONTROL-135 MM ITB, PROACT GEN3 MODEL III (SIDE GLANDS, GENERAL SALE) | 8404-337, ACTUATOR-PROACT GEN3 FLEX, MODEL III (SIDE GLANDS, GENERAL SALE) |
160 | 8235-374 | CONTROL-160MM (AL) THROTTLE BODY WITH P-SERIES MODEL III, GENERAL SALE | 8404-102, ACTUATOR-PROACT P-SERIES, MODEL III, VIBE ENHANCED | - | ||
180 | 8235-375 | CONTROL-180MM (AL) THROTTLE BODY WITH P-SERIES MODEL IV | 8404-103, ACTUATOR-PROACT P-SERIES, MODEL IV, VIBE ENHANCED (GENERAL SALE) | - | ||
180 | 8335-016 | CONTROL-180 MM ITB, PAG3 FLEX MODEL IV (JICHAI, D+, 16-PIN C/P/A) | 8404-326, ACTUATOR-PROACT GEN3 FLEX, MODEL IV (16-PIN (C/P/A), D+ CONFIG, ITB ONLY) | 8335-016 | CONTROL-180 MM ITB, PAG3 FLEX MODEL IV (JICHAI, D+, 16-PIN C/P/A) | 8404-326, ACTUATOR-PROACT GEN3 FLEX, MODEL IV (16-PIN (C/P/A), D+ CONFIG, ITB ONLY) |
